EA576H1 Outdoor Rental LED Display: P3.79 and P4.8 Options

Choose the cabinet format with the wall layout

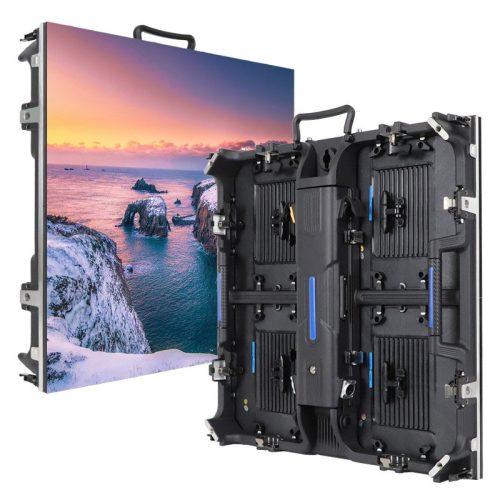

EagerLED’s EA576H1 is an outdoor rental LED display with a 576 × 576 mm cabinet and 288 × 288 mm modules. The official page offers P3.79 and P4.8 versions and identifies stage events, exhibitions and rental inventory as applications. Each listed cabinet weighs 8 kg. EA576H1 overview

Start the enquiry with the required display outline. Mark the available width and height, rather than rounding the project into a cabinet quantity before a layout has been proposed. Ask EagerLED to return the arrangement and resulting dimensions using this cabinet format. That makes any adjustment between the desired outline and the proposed screen visible to the project team.

Compare P3.79 and P4.8 using the actual model columns

The two published models share the cabinet and module dimensions but have different module resolutions and drive modes. The table below preserves those distinctions, along with common parameters from the official specification table. EA576H1 model specifications

These are the entries in the official parameter table. The model reference should remain attached to the specification throughout the quotation and handover. The shared physical format does not erase the different module resolutions or drive modes.

Send content examples showing the material the screen must display, along with the intended audience positions. Request a demonstration suited to that brief. The manufacturer itself advises choosing between the pitches with viewing distance, content and budget in mind, rather than selecting on pitch alone. Pitch-selection guidance

If the package will be filmed, identify that requirement in the enquiry and agree on a demonstration with the intended recording setup. Avoid turning the published refresh value into a blanket promise about every camera combination. Keep the configuration and acceptance discussion tied to the event’s actual requirements.

Cabinet hardware and repeated assembly

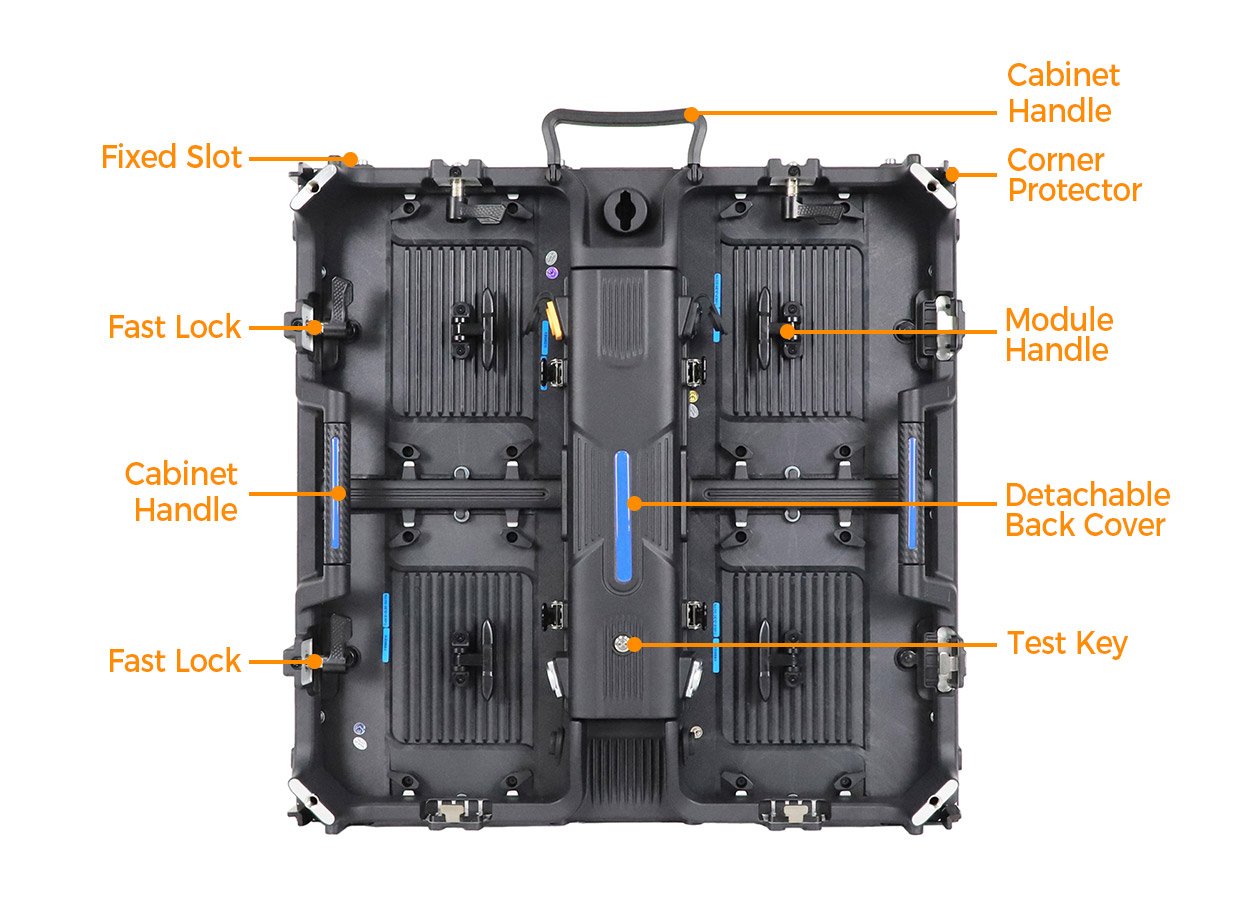

EagerLED describes handles, fixing slots and quick locks for positioning and connecting the panels. It also identifies corner protectors intended to protect module edges during handling. These features form part of the documented cabinet design. Cabinet hardware

For a rental fleet, include packing and unpacking in that demonstration. Specify the cases or other transport packaging you want priced, and ask for the packed quantities and dimensions. A cabinet’s stated 8 kg weight is a product parameter, not a complete description of a shipment with cases and other equipment.

If you already own cabinets and are evaluating EA576H1 as an addition, provide the current equipment references. Request a proposal that states how the new inventory will be used. Do not assume a mechanical or operating combination with another family when the EA576H1 source has not documented it.

Front modules, rear electronics and spare parts

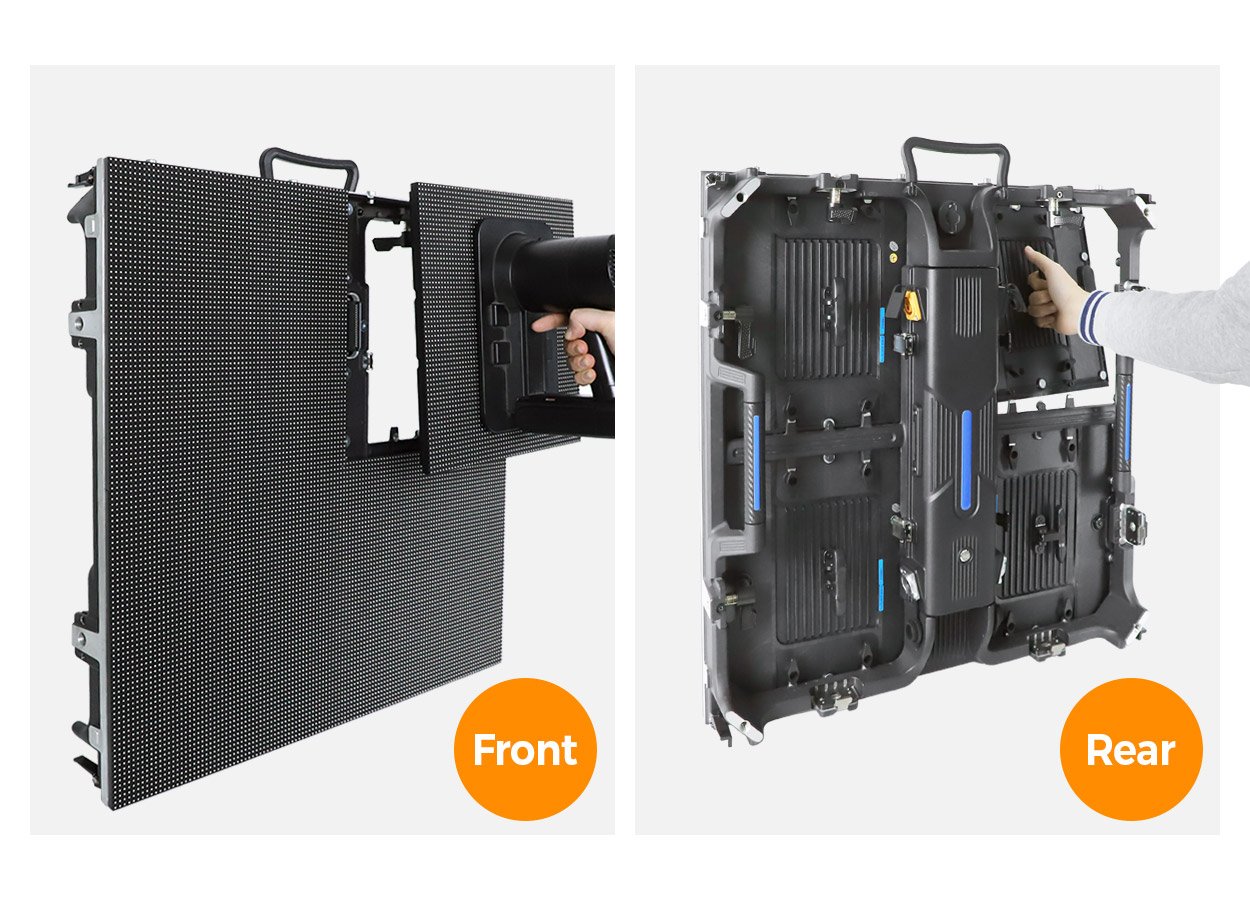

The official description gives EA576H1 both front and rear service access. Magnetic modules provide front access, while the rear design offers another maintenance route. The rear power box and back cover are detachable, with a quick-release buckle and HUB connection design described on the page. Front and rear service

Review module access and electronics access as separate tasks. Ask for the procedure relevant to your intended installation, with the available working space shown on a layout drawing. Have the supplier identify the required removal tools and the references of replacement modules for the chosen pitch.

EagerLED’s service notes also ask buyers to confirm compatible spare power supplies and receiving cards, because supplied project configurations may differ. Use the component references in the actual order when purchasing spares later. A cabinet-family name alone should not be the whole spare-parts request. Rear assembly and components

Curved layouts and the outdoor installation brief

EA576H1 can form an arc-shaped wall using an optional curved lock. The manufacturer asks buyers to confirm the supported angles and the required layout before finalizing the design. Include the desired width and curvature in the enquiry so the optional equipment can be identified. Curved-lock option

A curve should have its own arrangement drawing and hardware schedule. If the cabinet package must also support the team’s flat-wall jobs, include those layouts in the review. Ask which items are common to the arrangements and which are specific to the curve. This keeps an optional feature from becoming an unstated assumption in the order.

The published protection grades differ by side: IP65 at the front and IP54 at the rear for both listed models. EagerLED asks buyers to check the complete installation requirements for the outdoor venue. Retain that distinction when describing the display; “IP65 everywhere” would not match the table. Outdoor protection details

Define the supply scope before comparing prices

The following checklist records the information needed for a configuration-specific offer. It does not describe an automatic accessory bundle.

Review the proposed package line by line before comparing totals. The rental display purchase guide can help organize controls, packing and other cost categories. Submit the finished brief through the project enquiry form and ask any later equipment changes to be reflected in a revised schedule.

Frequently asked questions

What are the two published pixel pitches?

EA576H1 is listed as OP3.79 and OP4.8. Their module resolutions are 76 × 76 and 60 × 60 pixels respectively, in the same 288 × 288 mm module format. Pitch and module entries

Do both variants have the same brightness?

Yes. The current table lists 4,500 cd/m² for both models, together with a refresh frequency of at least 3,840 Hz. Keep the exact model in the purchase specification even where some parameters are shared. Display parameters

Is the rear of the cabinet rated IP65?

The published rating is IP65 front and IP54 rear. Review the complete installation requirements with the supplier for the proposed outdoor venue. Protection ratings

Can the cabinets form a curved backdrop?

EagerLED documents an optional curved lock for an arc-shaped wall. Request the option and obtain confirmation of the supported angle and proposed layout before finalizing the order. Optional curve configuration
