EA-OFixedEA-OFixed
EA-OFixed covers several outdoor fixed-installation cabinet families. Full model references identify different cabinet and module formats, and its front and rear protection ratings must remain separate in project specifications.
EAGERLED PRODUCT COLLECTION
Commercial LED Display
Fixed advertising screens and outdoor floor displays for commercial sites.
A commercial display has to work in a particular location every day. A roadside billboard, a shopfront corner and a walkable outdoor screen need different cabinet layouts, support structures and maintenance arrangements. Begin with a site drawing that shows where people will view the screen and where a technician can reach it.
Explore the products
All products →EA-OFixed
EA-OFloorEA-OFloor

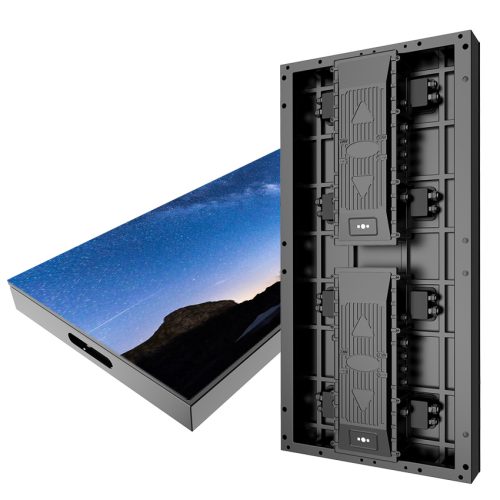

EA-OFloor is an outdoor floor display with a protective module mask, magnetic front service and an above-ground installation recommendation. The published variants differ in pixel resolution and brightness, and interaction needs confirmation in the quotation.
EA1000F2EA1000F2
EA1000F2 is a fixed outdoor advertising LED screen with seven published flat-screen configurations, front and rear module service, and optional beveled or curved corner cabinets. Brightness, cabinet geometry and electrical parameters depend on the selected model.
EA960F4EA960F4
EA960F4 combines an aluminum outdoor advertising cabinet with front and rear module service. Its flat formats and optional beveled or curved treatments need a defined cabinet drawing, with curved specifications kept separate from the main table.
EA960R4EA960R4
EA960R4 is a magnesium-alloy outdoor display cabinet for fixed advertising and rental applications. Its rear access, side cable routes and distinct SMD and DIP configurations make the installation plan and full model reference central to selection.
Compare the product formats
The models below cover fixed advertising walls and a separate floor format. Compare the exact pitch and cabinet configuration within each family. Brightness, power and protection figures describe specified equipment; the finished installation also includes cables, control hardware, drainage, ventilation and a structure designed for the site.
| Product | Format | Application | Confirm before ordering |
|---|---|---|---|
| EA-OFixed | Outdoor fixed cabinet family | Advertising walls using the documented cabinet formats | Compare each format with its own specification table. |
| EA-OFloor | Outdoor LED floor cabinet | Ground-level visual installations | Confirm the support grid, walking surface, drainage and sensing option. |
| EA1000F2 | Fixed outdoor advertising cabinet | Flat advertising walls and optional corners | Specify the flat, beveled or curved cabinet arrangement. |
| EA960F4 | Front-service advertising cabinet | Outdoor walls with restricted rear access | Check the maintenance operation and the required working space. |
| EA960R4 | Outdoor billboard cabinet | Fixed commercial advertising screens | Keep the selected pitch, cabinet material and service side explicit. |
Each product guide includes its EagerLED source specifications and image references. Confirm the selected variant and complete supply scope in a written quotation. Our methodology explains how we use manufacturer information.
How to choose your configuration
Start with the viewing task
Describe the audience position, typical content and daylight conditions. A screen intended to show a short roadside message has a different content brief from a pedestrian-facing menu or a detailed promotional video. Choose pitch and image dimensions together, and assess sample artwork at the intended viewing distance.
Resolve access before buying cabinets
Show access routes, lifting arrangements and component removal space on the installation drawing. Front service can help where the rear is enclosed, but it still requires a safe place to work. Ask which components can be changed from each side and whether surrounding cladding obstructs the operation.
Quote the installed system
List the screen, control hardware, power distribution, cables, supports, commissioning and spare parts separately. Outdoor projects also need an agreed approach to environmental exposure and site loads. Keep civil or structural work clearly assigned so a cabinet-only quotation is not mistaken for the cost or scope of the finished installation.
Frequently asked questions
Can an advertising cabinet be installed as a floor?
Use a product documented for floor installation. A vertical billboard cabinet does not establish a suitable walking surface or load path. EA-OFloor is a separate floor system, with its own surface and support questions.
Does a front-service cabinet sit directly against a wall?
Check the installation drawing. Front access describes a maintenance method; the system still needs suitable supports, cable routes, ventilation and access to every replaceable component.
How should I compare two outdoor screen quotations?
Compare the same finished dimensions, pitch, cabinet variant, service arrangement and supplied equipment. Include installation responsibilities and the spare-parts package. A family name or screen area alone is not enough for an equivalent comparison.
