EAiBall Indoor Spherical LED Display

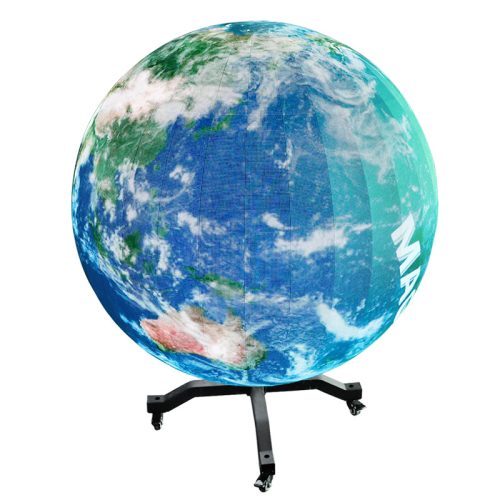

EAiBall is EagerLED’s indoor spherical LED display for panoramic content around a 360° surface. The official page offers P1.8 and P2.5 pixel-pitch options and five standard diameters: 1, 1.5, 2, 2.5 and 3 m. Custom trapezoidal flexible modules follow the sphere’s curved frame, and the modules can be removed from the front for service. Official product overview

This format calls for a different purchasing brief from a flat rectangular wall. Define how people will approach and move around the sphere, where it will sit within the room and what content it should present. Those decisions provide a useful basis for selecting the diameter, reviewing a sample and agreeing the installation method before asking for a complete-system quotation.

Diameter, pitch and published specifications

The source describes EAiBall as an indoor product with hanging, floor-standing and embedded installation options. It publishes brightness of 500–700 cd/m² and a refresh rate reaching 3,840 Hz. Preserve the range and the stated refresh wording rather than treating one endpoint as a promise for every unspecified configuration. Configuration information

These are the published choices and characteristics of EAiBall, not a bill of materials for every possible sphere installation. Specifications and installation options

Ask the supplier to identify the chosen diameter, pitch, installation method and control scope in one configuration schedule. If alternatives are offered, compare them as complete proposals. Keep the approved schedule with the final drawing and demonstration record so the buyer, content team and installer continue to refer to the same system.

Design content for a spherical surface

The manufacturer describes EAiBall as a complete 360° display surface rather than a flat rectangle. It specifically advises preparing content for the curved canvas so text, logos and focal points remain readable around the sphere. Application examples include museums, exhibition halls, airports, retail environments, art installations and live events. Content and application scope

Prepare a content brief alongside the hardware enquiry. Identify whether the installation will show abstract motion, a branded sequence, informational graphics or another defined use. Include the actual text and logos that matter to the owner, and ask the supplier to explain the content preparation and playback scope included in its proposal.

For the demonstration, mark the intended viewing positions rather than reviewing only a front-facing photograph. Ask to see how the proposed content appears as a viewer changes position around the display. Record who will supply final content and who will approve the playback demonstration. This makes content readiness part of the purchasing process instead of leaving it as an assumed task after the hardware arrives.

Curved modules and front-service access

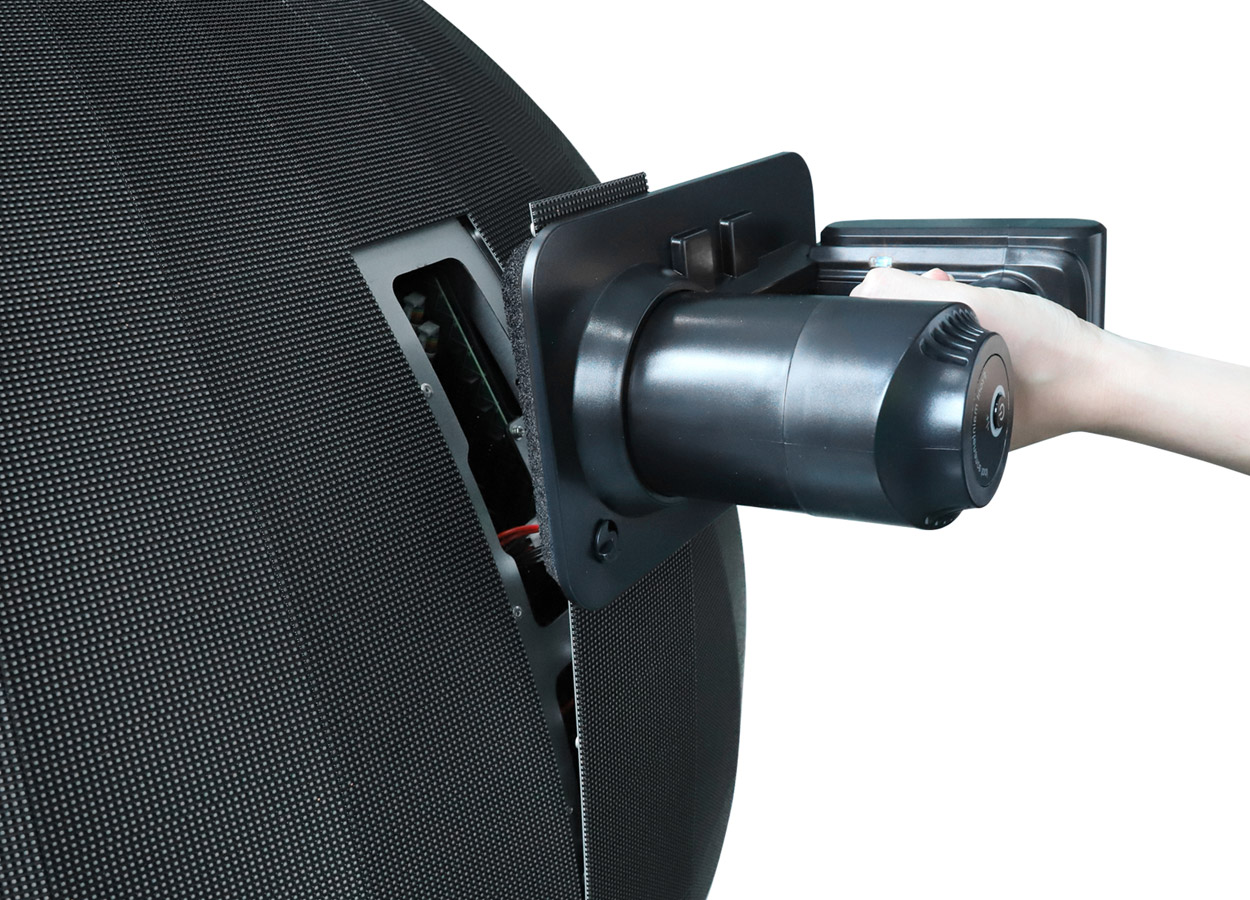

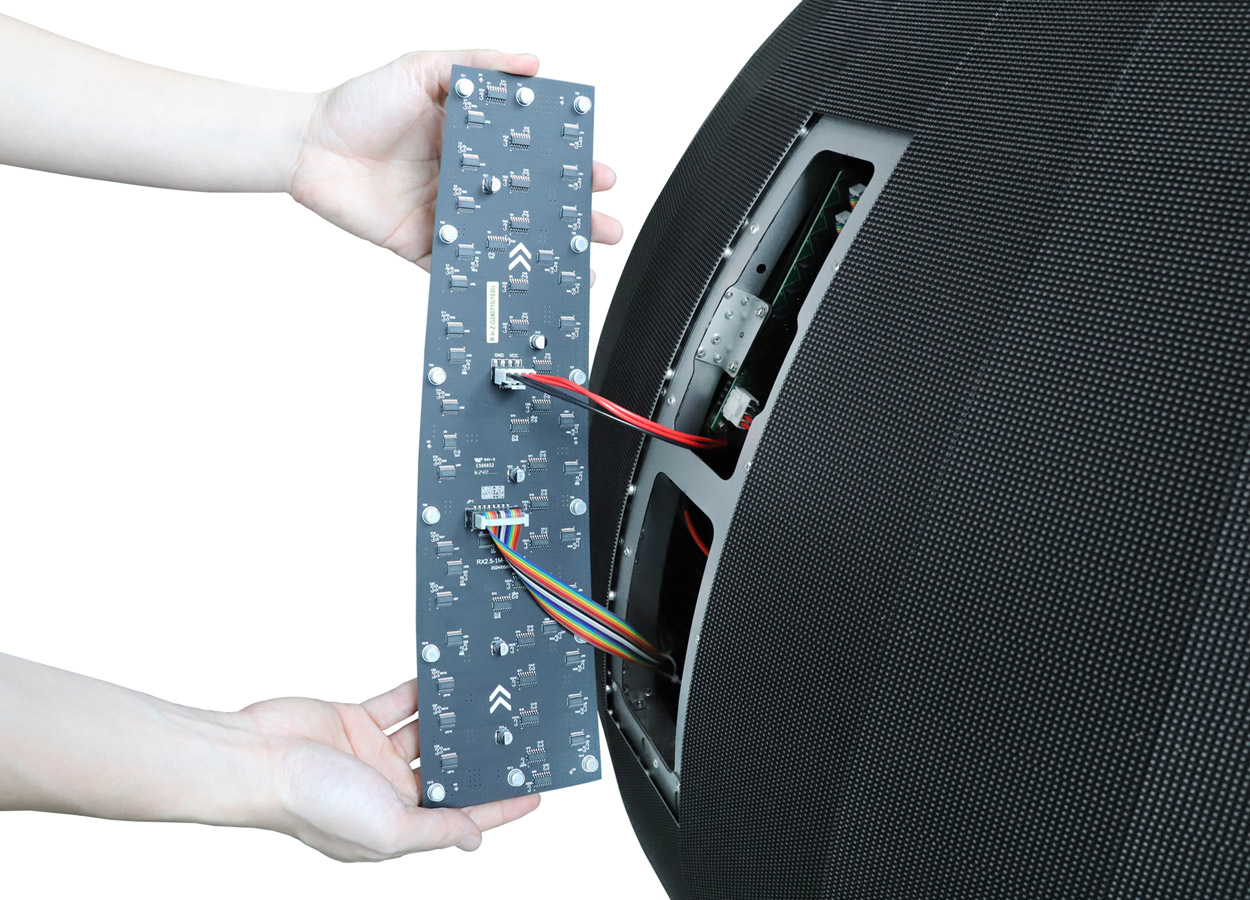

EAiBall uses custom trapezoidal flexible LED modules arranged to follow the curved frame. The source describes those matched modules as forming a continuous display surface. It also states that modules can be removed and replaced from the front, without dismantling the complete sphere structure for that work. Module construction and service

Request a parts schedule tied to the ordered sphere configuration. Keep module identifiers and replacement requirements clear instead of assuming a generic flexible panel is interchangeable. Where the supplier proposes spares, ask it to show which parts belong to which positions or assemblies in the delivered system.

Front service describes the side from which module work is performed; the installed sphere still needs a practical access plan. Ask for the service procedure and the working arrangement for the chosen height and mounting method. Include a demonstration or documented handover of module removal and replacement, with the tools and responsibilities identified. This is especially useful when the sphere will be installed where routine access is limited by its location.

Choose the installation with the venue

The official page offers hanging installation, floor-standing installation and embedded installation. It states that the appropriate method depends on factors including sphere diameter, total weight, viewing height, structural load and maintenance access, and asks for support engineering to be confirmed for each venue. Installation scope

Provide the venue layout and the intended sphere position when seeking a proposal. Ask for the support arrangement to be shown in relation to the surrounding architecture and the service route. Do not infer an approved mounting arrangement from an image of another sphere installation. The useful deliverable is a proposal for the actual location and configuration being purchased.

EAiBall’s published indoor scope includes IP41 protection and a working temperature range of −10°C to +50°C. The source also calls for the venue temperature, ventilation and duty cycle to be confirmed during configuration. Retain those conditions in the project brief rather than borrowing an environmental rating from an outdoor display. Operating environment

Keep the hardware specification and the installation responsibilities in separate, coordinated schedules. A sphere diameter establishes one product choice, but it does not describe the complete support, electrical, control or access arrangements. Ask the responsible project parties to sign off the same drawing revision before the order is finalized.

What a complete sphere-display quote should address

The following checklist is purchasing advice. It identifies decisions and documents to request without suggesting that an unspecified price includes every item.

EagerLED’s page states that final pricing depends on pitch, sphere diameter, mounting method, control system, shipping destination and quantity. Those are useful fields for an enquiry, but the page does not establish a price for a future order. Pricing scope

Compare proposals against one agreed configuration and content brief. The quote comparison guide can help record changes to inclusions and responsibilities. Use the project enquiry form to describe the intended venue, sphere diameter and mounting concept so the resulting discussion starts with the actual project.

EAiBall questions

Which diameters are listed?

The official page lists five standard diameters: 1, 1.5, 2, 2.5 and 3 m. It names P1.8 and P2.5 as the pixel-pitch options. Configuration choices

Does front service mean the sphere needs no access planning?

No. Front service identifies how modules are removed. The source also calls for maintenance access and installation engineering to be considered for the venue. The project needs a practical working arrangement for its chosen mounting position. Service and installation

Can a flat video brief be used without further content discussion?

The manufacturer advises preparing content for the spherical canvas, including the treatment of text, logos and focal points. Ask who is responsible for that preparation and how it will be demonstrated. Content guidance

Is EAiBall an outdoor display?

The documented model is intended for indoor use, with IP41 protection and a −10°C to +50°C working temperature range. Do not treat its spherical form as evidence of a different environmental application. Indoor scope
