EA1000TOF2 Fixed Outdoor Transparent LED Screen

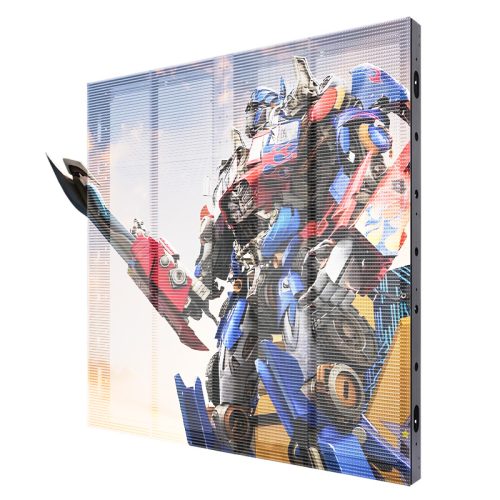

EA1000TOF2 is a fixed outdoor transparent LED screen for facade and architectural display installations. EagerLED specifies 60% transparency, rear-access maintenance and IP65 protection. Its visible product description distinguishes several cabinet formats and gives a configuration range of 4,500–5,000 cd/m² brightness, with a refresh rate of at least 3,840 Hz. Official product overview

For this model, the cabinet size and rear-service arrangement should be settled early. The largest named cabinet is not the only listed option, and the weight changes with cabinet size. A useful enquiry therefore combines the facade drawing, proposed cabinet schedule and service access in one brief, rather than starting from a general outdoor-screen area alone.

Cabinet sizes and weights stay together

The source assigns 15.8 kg to the 1000 × 1000 mm aluminum cabinet and describes it as approximately 80 mm thick. It separately lists 1000 × 500 mm cabinets at 8.5 kg and 1000 × 750 mm cabinets at 12.5 kg. The approximate thickness statement is attached to the largest format in the visible description. Cabinet-format details

Keep the format and weight paired in the order schedule. The figures describe cabinets, not a complete installed assembly with its supporting structure and associated equipment. Request the complete installation information separately instead of treating one cabinet’s weight as the whole project load. Manufacturer’s cabinet description

Ask the supplier to show the proposed arrangement on the architectural drawing. Mark the screen boundaries, nearby features and positions where a different cabinet format is proposed. If the arrangement changes during design review, update the cabinet quantities and the supporting documents together. This creates a consistent record for purchasing, installation and later maintenance.

Transparency in an architectural setting

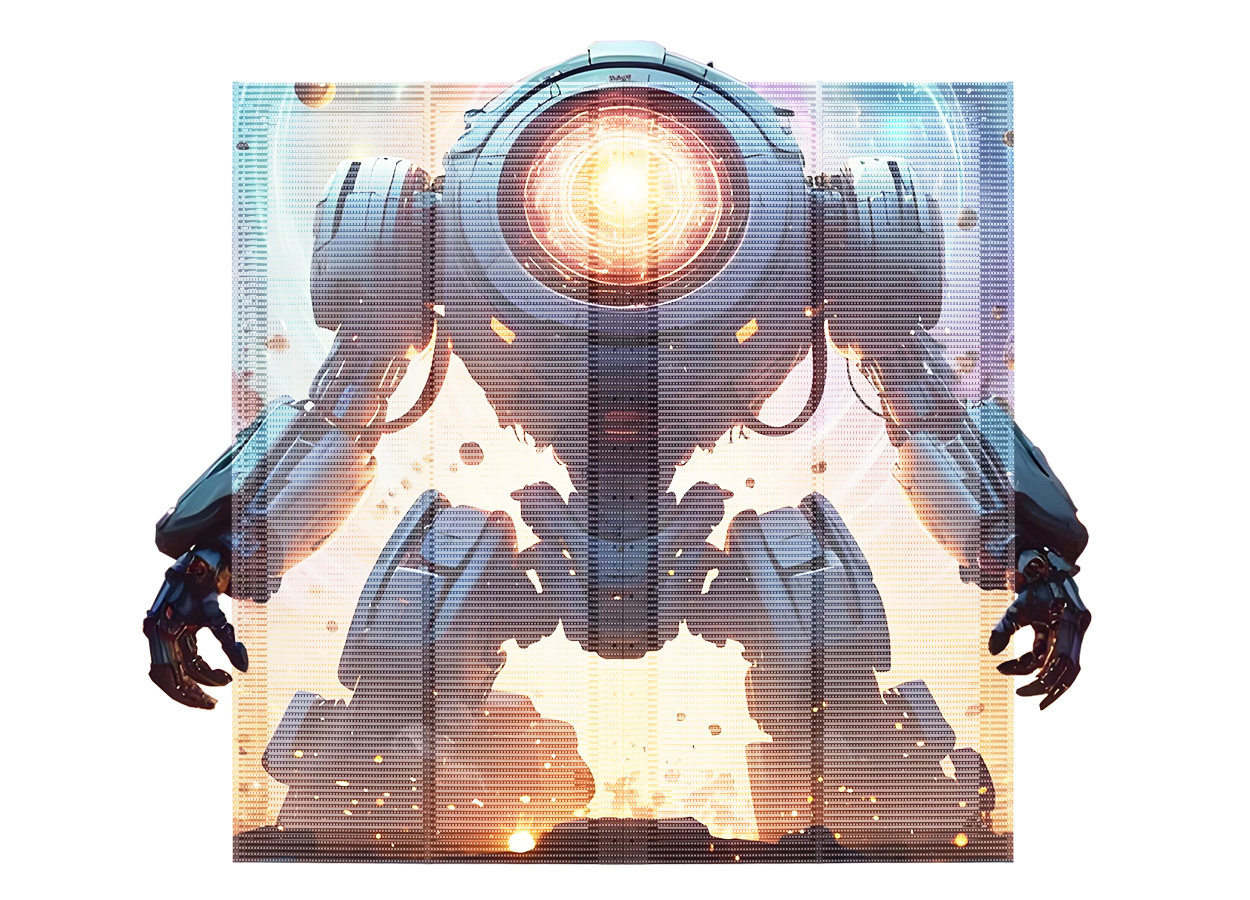

EA1000TOF2 is presented for fixed outdoor installations that need a display while retaining views through the screen. Its published transparency is 60%. The manufacturer describes a slim aluminum frame and a transparent structure as part of the product’s architectural application. Transparency and application

Discuss the intended appearance from both sides of the installation. Provide representative display content, the main audience positions and the views that the owner wants to preserve. A demonstration brief should identify the actual graphic elements being judged, including text and logos, rather than relying only on a promotional video with different content.

Keep the published transparency figure separate from project approval of the facade design. It describes a product characteristic; it does not establish the structural, access or installation requirements of a specific building. Request those requirements as part of the project proposal. The same distinction helps prevent an image of an attractive architectural display from being treated as a complete design for another site.

Outdoor protection has a defined product scope

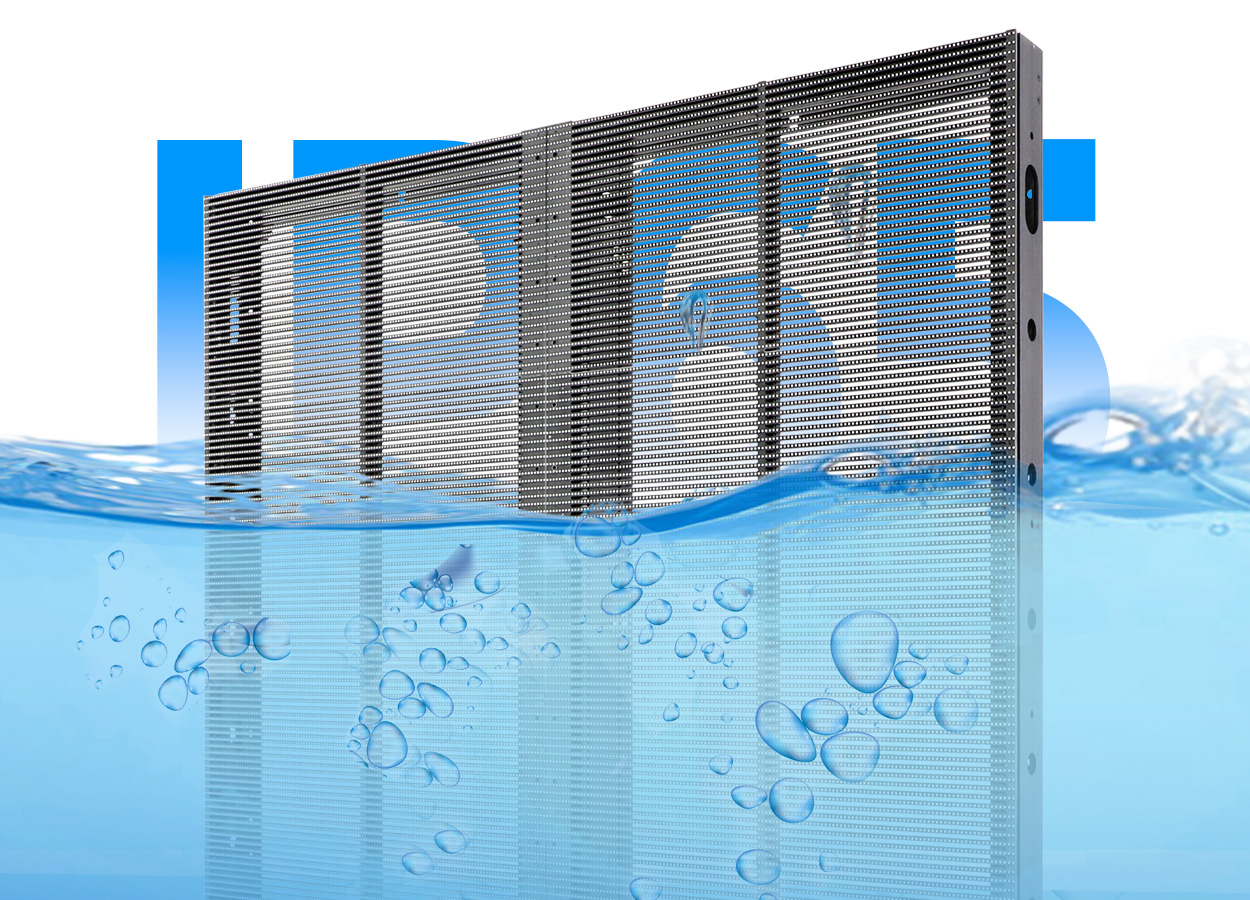

The official description attributes EA1000TOF2’s IP65 rating to fully sealed LED beads and silicone-encapsulated circuit boards. It identifies permanent outdoor use and gives an operating temperature range of −20°C to +50°C. These are the environmental statements for this exact model. Outdoor construction and operating range

Describe the intended location and operating conditions in the enquiry and ask the supplier to confirm the proposed configuration for that brief. Do not replace the published temperature range with the range of a similarly named indoor or rental product. Likewise, retain the IP65 designation rather than turning it into an unrestricted claim about every possible exposure or installation condition.

Request the documentation for all equipment included in the proposed system. The cabinet’s published rating does not, by itself, describe every external connection, controller or installation detail in an unspecified quotation. The owner and installer should receive a clear equipment schedule and an agreed set of responsibilities for the complete project.

Rear service and configuration-specific performance

EA1000TOF2 has an openable rear cover for access to internal components. The manufacturer describes this rear-service approach for installations where the back of the cabinet remains accessible. Plan around that stated method rather than assuming the screen can be fully serviced from the viewing side. Rear-access maintenance

Show the service route and working position on the installation drawing. Ask for the access dimensions, cover-opening arrangement and maintenance procedure for the proposed cabinet layout. A precise service requirement is more useful than a generic promise of convenient maintenance, particularly when the display forms part of a permanent architectural installation.

The visible overview gives brightness of 4,500–5,000 cd/m² across available configurations and a refresh rate of at least 3,840 Hz. It does not assign every brightness value to a particular cabinet size in the prose. Keep the quoted brightness attached to an identified configuration, and request the matching specification rather than selecting the highest value as a universal default. Visual specification scope

For the visual review, agree the representative content and viewing conditions before evaluating a proposed configuration. Record any changes to the cabinet arrangement or display specification so that the demonstration, quotation and order continue to refer to the same system.

Prepare a complete fixed-outdoor enquiry

Use this table to organize the remaining project decisions. It is a purchasing checklist, not a statement that every listed item is included as standard.

Before comparing totals, check that the proposals describe the same cabinet mix and the same installation responsibilities. Keep optional items separate from the agreed base scope. Our LED quote comparison guide provides a way to record differences, and the project enquiry form can be used to submit a dimensioned brief. Published product characteristics do not establish a current price or the contents of a future order.

EA1000TOF2 questions

Does every EA1000TOF2 cabinet weigh 15.8 kg?

No. The page assigns 15.8 kg to 1000 × 1000 mm, 12.5 kg to 1000 × 750 mm and 8.5 kg to 1000 × 500 mm. Keep each weight with its format. Cabinet options

Is the screen serviced from the rear?

Yes. The documented arrangement uses an openable rear cover and requires access behind the cabinet. Ask for the exact service layout for the proposed installation. Maintenance design

Is 5,000 cd/m² the brightness of every configuration?

The visible overview gives a 4,500–5,000 cd/m² range across available configurations. Request the value and supporting specification for the configuration being quoted. Brightness scope

Is this the same model as an indoor transparent cabinet?

No alias relationship is established by a similar product name. This page covers EA1000TOF2 and its documented fixed-outdoor scope. Keep the exact identity on the order, installation drawings and replacement-parts records.
