EA1920OP2 Outdoor LED Poster: Folding, Pitches and Setup

A movable sign for outdoor campaigns

The EA1920OP2 is an outdoor LED poster for locations where a message must move with an event or campaign. EagerLED documents a 640 × 1920 mm display, a folding cabinet, four wheels and three pixel pitches. The manufacturer also describes double-sided operation with independent content. The physical arrangement matters: approve the display orientation and active faces in the supplier’s configuration drawing before designing two separate messages. EA1920OP2 overview.

An event entrance may need a timetable on one approach and directional information on another. A retail promotion may need one tall visual that changes through the day. For either use, establish where people will first see the sign, where they stop to read it and how the poster affects the pedestrian route. The broad LED poster category helps compare this mobile format with other poster installations.

This model’s documented outdoor protection and 5,000 cd/m² brightness are relevant when the display faces daylight. They do not settle the installation details of a particular pavement, forecourt or venue. Describe the intended location and operating conditions when requesting the configuration, including the surface beneath the wheels and the route to storage. EA1920OP2 brightness

Three pitches with different pixel canvases

Each option uses the same listed display size and a 320 × 160 mm module footprint. The pixel matrix and power entries differ. Keep those differences attached to the exact ordered model. EA1920OP2 specification table.

The table lists 58.2 kg display weight for each variant, 14-bit grayscale, a 160° viewing angle and refresh frequency of at least 3840 Hz. Brightness is 5,000 cd/m² across the three pitches. Input power is AC 100–240 V, 50–60 Hz. These are manufacturer entries for the product, not measurements of a particular event installation. EA1920OP2 common specifications

Review artwork at its actual output dimensions. A portrait photograph can remain effective with relatively little text; a schedule containing many sessions needs a more careful layout. The finer pitch adds pixels within the same physical size, but the reader still needs enough time and space to absorb the message. Provide one typical schedule or promotion when evaluating the options, and test a sample at the intended approach distance.

The source labels power as watts per set. Do not substitute watts per square metre or silently double the values for a double-sided arrangement. Ask the supplier to confirm what the quoted set includes, its operating geometry and the applicable total electrical load. Use the maximum entry when the installer plans the supply; average figures are only an initial operating estimate.

Folding, wheels and the transport route

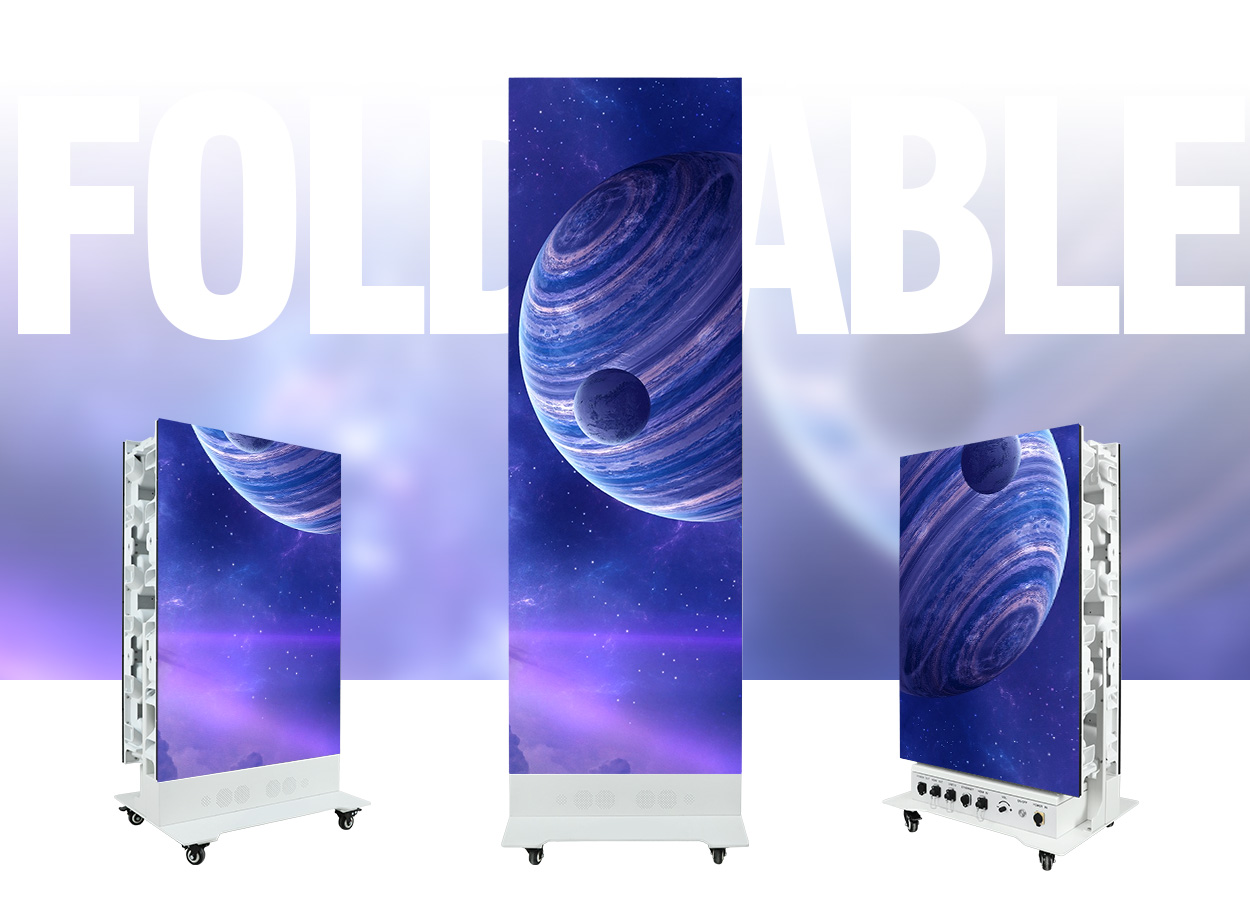

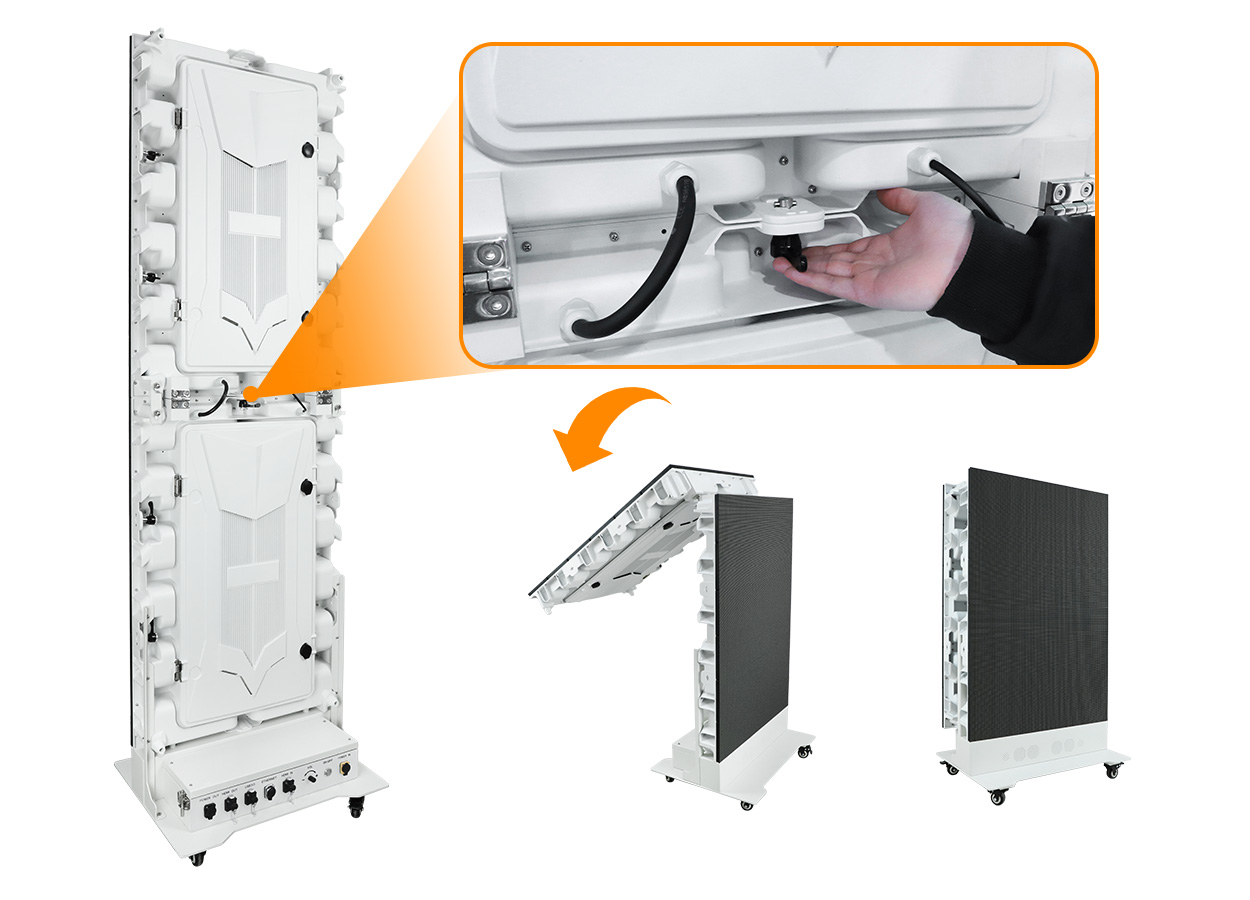

The cabinet folds at its central joint, as shown in the manufacturer’s product imagery. Four wheels allow the assembled unit to be rolled into place. These features reduce the space needed for storage and movement, but the published page does not provide a complete folded envelope or packaged dimensions. Obtain those figures before choosing a vehicle or storage rack. Folding design.

Trace the whole route from unloading to the operating position. A smooth exhibition floor differs from a route with door thresholds or uneven paving. Record narrow doors, changes in level and the location where the unit can be unfolded without blocking visitors. Request the approved handling method, locking sequence and deployment checks for the supplied version.

For repeated campaigns, keep the transport accessories together with the display. Label the cables and retain the packing plan so a different crew can set it up consistently. Ask whether the quote includes a case and what surfaces may contact the display during transport. The foldable design should be treated as a documented mechanism with an operating procedure, rather than a reason to improvise handling.

Outdoor placement and rear maintenance

The manufacturer specifies IP65 on both the front and rear. That supports this product’s outdoor positioning, while the actual site still needs an agreed arrangement for power connections, cable routing and stability. The source does not publish a wind-load or ballast schedule. Have the supplier and venue establish those requirements for the intended location. Outdoor protection specification.

Keep the rear cover accessible. EagerLED describes a quick-release cover that provides rear access for inspection and component service. A poster parked directly against a wall or inside a close-fitting decorative enclosure may obstruct that access. Show the proposed clearances on the layout and identify where a technician can work after the sign is deployed.

For daily operation, set a brightness level appropriate to the location and verify the message in the actual ambient light. Brightness that helps a daytime campaign may need adjustment after dark. The source supplies a rated value; the operator and site team should agree the usable settings and operating times for their venue.

Inputs, sound and joining multiple posters

The documented rear control panel includes HDMI input and output, USB 3.0, Ethernet, power input and output, and volume control. Built-in speakers support audio playback. Ask which supplied control configuration enables each intended workflow, particularly if staff will alternate between local content and a connected player. A port list alone does not establish every playback function. EA1920OP2 control features.

EagerLED also documents quick locks for connecting multiple units into a wider display. The content canvas, controller capacity and cable arrangement need to be specified for that joined layout. Have the supplier label the cabinet order and screen mapping. An operator should be able to reproduce the agreed layout without guessing which poster receives each part of the image.

For a permanent or larger assembled event wall, compare the planning approach for a rental LED display. For an indoor-only poster project, the EA1920IP4 provides a relevant format comparison. Keep the environment and deployment pattern explicit when making that shortlist.

Define a repeatable setup

Send the supplier the number of units, selected pitch, operating arrangement and representative content. Add site photographs, available power, storage access and expected frequency of relocation. If posters will be joined, include both the normal layout and any smaller arrangement the crew expects to use.

Request a demonstration of the complete start-up sequence, content changes and restart after power loss. Retain configuration files and a wiring diagram with the delivery records. A project quote should itemize the display configuration, control equipment, transport packaging and service parts so the event team knows what it will receive.

EA1920OP2 questions

Is the screen size the folded transport size?

No. The source lists 640 × 1920 mm as the display size. Ask for the folded dimensions and the packed envelope separately before booking transport. EA1920OP2 dimensions

Does IP65 remove the need to plan the outdoor setup?

The published protection applies to the front and rear of the product. The site still needs an approved power connection, secure placement and suitable cable routing. Obtain location-specific stability guidance because the source provides no wind-load schedule. EA1920OP2 protection

Can several units show one larger image?

The manufacturer documents quick-lock splicing. Confirm the number of units, controller capacity and combined screen map, then test the complete arrangement with the intended content.

Does the product include rear service access?

Yes. The published design uses an openable rear cover. Reserve sufficient access behind the deployed unit and obtain the component-service procedure.

Which pitch is best for schedules and small lettering?

Compare the table’s screen resolutions using an actual schedule. P1.86 provides the largest listed pixel canvas, but the final choice should follow a readability check at the intended distance and layout. EA1920OP2 resolution table
