EA1920iP4 Foldable LED Poster: Sizes, Variants and Ordering

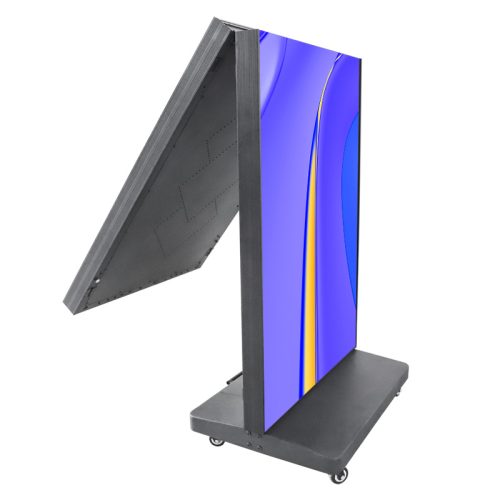

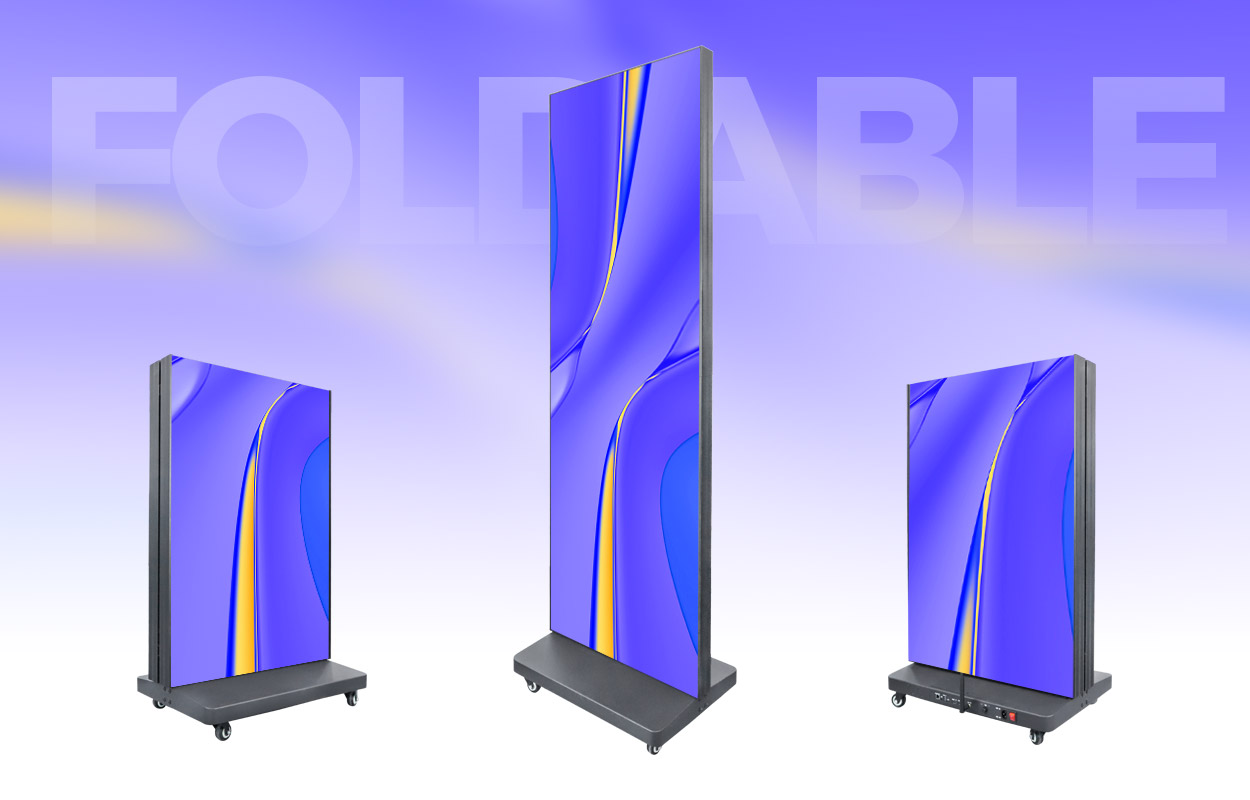

The EA1920iP4 is a freestanding, double-sided LED poster for indoor advertising and presentation spaces. EagerLED describes a folding frame with four caster wheels, a 60 mm cabinet and a complete display weight of 43.5 kg. The published display format is 640 × 1920 mm. Several units can join through quick locks when a project calls for a wider image. EA1920iP4 overview

For a store, exhibition or showroom, the first purchase decision is how staff will use the display between presentations. Decide whether it will stay in one position, move between rooms or travel in a case. Put that operating routine in the brief alongside the content and pixel pitch. It gives the supplier a specific arrangement to demonstrate before delivery.

Check the display, stand and packed dimensions

The product’s headline dimensions describe different parts of the equipment. EagerLED gives a display size, cabinet thickness and total display weight; these should remain separate entries in your planning documents. Request a drawing that also identifies the stand’s footprint and the clearance needed to open and close the frame.

The dimensions and product characteristics above come from the official EA1920iP4 page. The requests in the final column are purchasing guidance, not additional manufacturer specifications. EA1920iP4 physical details

Mark the display position on the venue plan and include nearby furniture. For equipment that will travel, ask the supplier to review your proposed packing arrangement and route between storage and the operating position. The folding percentage alone does not establish a case size, freight saving or handling time. Keep those matters in the delivery discussion rather than deriving them from the headline claim.

Keep SMD and COB quotations identifiable

The EA1920iP4 page lists SMD/GOB options from P1.25 through P2.5. Its separate flip-chip COB table covers P1.25, P1.53 and P1.86. The module size is 320 × 160 mm, and the listed refresh frequency is at least 3,840 Hz. Ask for the exact module construction and pitch together on the quotation. EA1920iP4 module options

Use this table to check the quoted version against the published brightness and power entries. The official EA1920iP4 tables label power consumption W/m². These figures must retain that area-based unit; they are not a ready-made total wattage for a complete double-sided display.

Ask the supplier for the complete offered system’s electrical requirements, identifying the number of active faces and any connected equipment. Do not substitute the published average for an electrical installation specification. The running-cost guide explains how to keep product power data separate from project assumptions.

For the image assessment, bring content that resembles the final playlist. Include the smallest text you intend to show and view it from the positions marked in your brief. Request the test on the proposed module version. Our pixel-pitch guide can help you structure that comparison without assigning an unsupported viewing-distance guarantee to a pitch label.

Specify what each side should show

EagerLED describes playing different content on the two sides of the EA1920iP4. It also describes unfolding and synchronizing the display, and using quick locks to join multiple units into a larger image. EA1920iP4 display arrangements

Draw the intended arrangement before commissioning artwork. Identify which face addresses each audience and whether the same promotion should appear on both. If several units will operate together, identify whether they should repeat independent posters or present one continuous composition.

Ask the supplier to return a layout and content template for that arrangement. Have the supplier show how content maps to the display and how operators check the intended playback mode. A picture of joined cabinets does not answer those operating questions for a particular controller and unit count.

List the joining parts and control equipment in the same order as the displays. For a later expansion, request a written description of the proposed additional units and any changes to the control arrangement. Avoid treating an unspecified future purchase as an already configured system.

Set up the everyday publishing routine

The EA1920iP4’s written product description lists USB 3.0, HDMI, Wi-Fi, Ethernet and a SIM card slot. It describes cloud content management and updates from mobile devices or computers. Built-in speakers support audio with the displayed media. EA1920iP4 playback features

Choose the task that staff must perform most often and use it for the handover demonstration. A local team might need to replace a promotion from a supplied file. A central team might need to update several displays from another location. Ask the supplier to explain the control hardware, software and account access included for that task.

Keep the demonstration practical. Have a member of your team load the approved sample, select the intended faces and check playback after the agreed restart procedure. If audio is required, include it in the sample. Ask how staff change the volume and who can change the playlist. Record the answers in the operating instructions delivered with the equipment.

The page’s list of interfaces does not establish a mobile data plan, software subscription or remote-support agreement. Request those commercial details explicitly where they form part of the proposed package.

Agree the service and delivery package

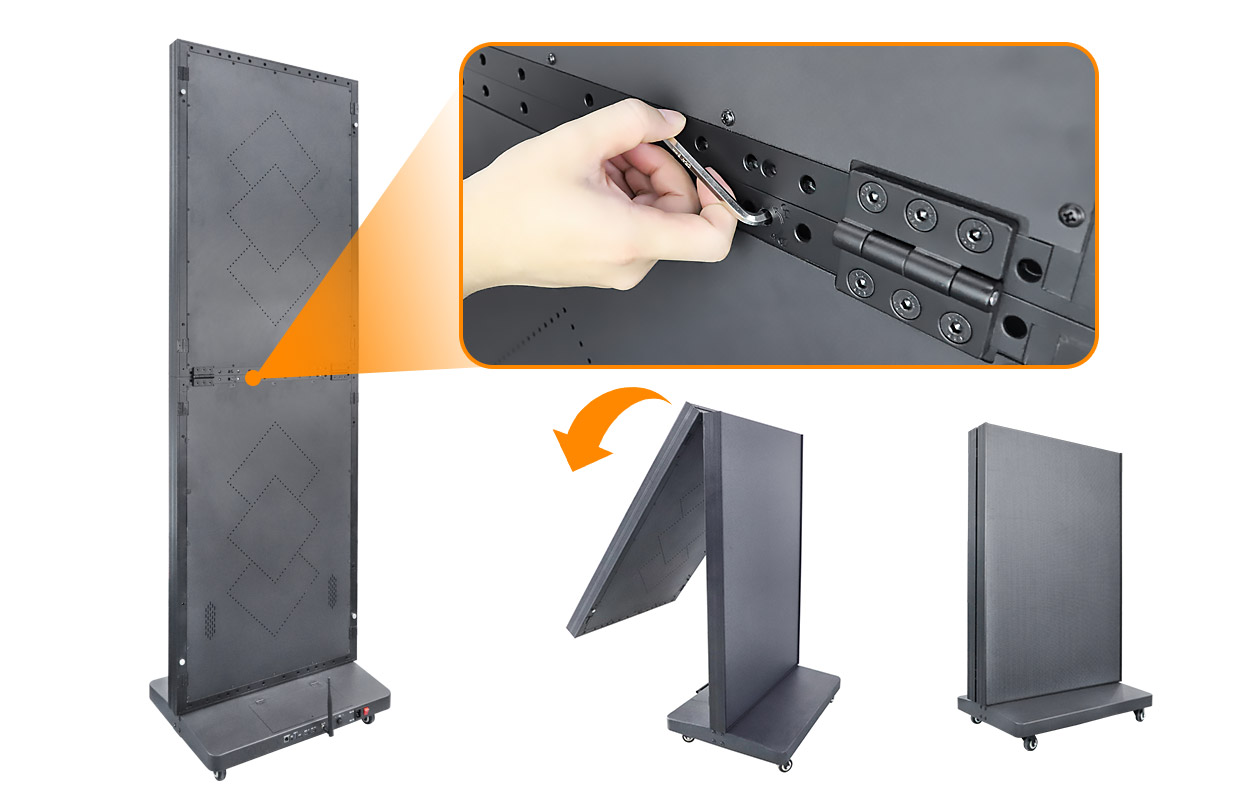

The manufacturer describes one-person folding and flight-case storage for the EA1920iP4. Request a demonstration of the specified handling procedure with the actual display and case. Have the supplier explain the steps your staff are expected to perform and the arrangements needed at your venue. EA1920iP4 packing

Ask for the module service instructions for the purchased version, including the tools and access needed. Specify spare modules by pitch and construction. Do not transfer a maintenance method from another poster model simply because the products look similar.

The order should identify the display configuration, case, supplied cables, control package and any joining hardware. Record delivery terms and the scope of training or on-site assistance. Use the quote checklist to track inclusions and exclusions, then request a quotation for that defined package. Pricing and availability need confirmation for the actual order; this page assumes neither.

EA1920iP4 questions

Does the 43.5 kg figure include the shipping case?

The official page describes 43.5 kg as the complete display weight. Obtain the packed shipping weight and external case dimensions separately. Do not label the display weight as a freight weight. EA1920iP4 weight

Is a COB version available at every listed pitch?

The dedicated COB table lists P1.25, P1.53 and P1.86. P2 and P2.5 appear in the SMD table. Name the selected technology as well as the pitch when requesting a quote. EA1920iP4 variants

Can it operate outdoors?

The manufacturer identifies the EA1920iP4 as an indoor poster and lists IP31. Use it within that documented scope. GOB module construction does not, by itself, establish outdoor suitability for the assembled product. EA1920iP4 protection

What should an acceptance demonstration include?

Ask to see the ordered content arrangement, the chosen update method, folding and packing, and the prescribed service procedure. Use your own media and have the intended operator repeat the routine. Agree that checklist with the supplier before delivery.
