EA250H8 Corner Rental LED Display: Geometry and Model Choices

A corner cabinet for a defined display shape

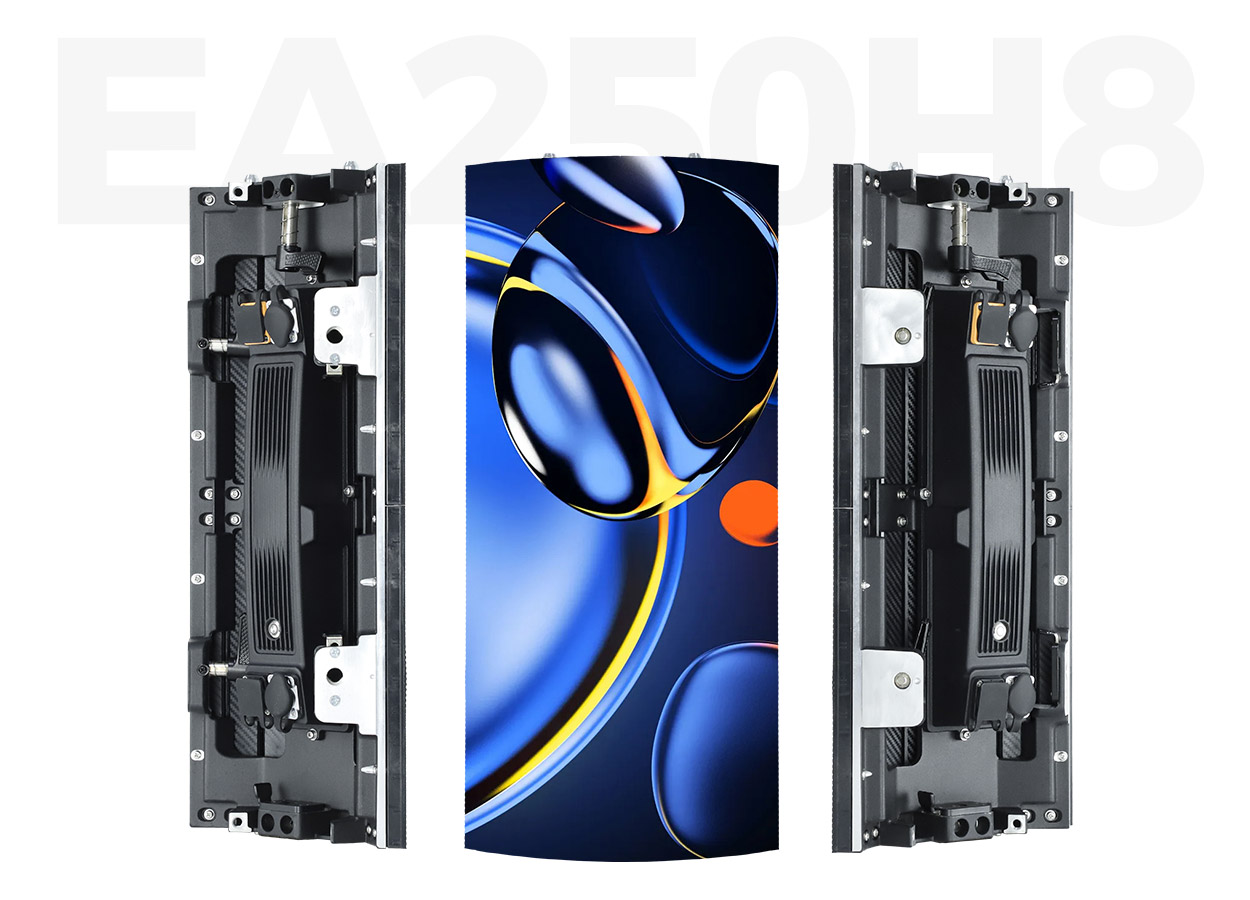

The EagerLED EA250H8 is a 250 × 500 mm rental cabinet designed around 90-degree corners and cylindrical arrangements. EagerLED lists connections to EA500H7, EA500H8, EA500H8V and EA1000H8 cabinets. Its role in a project can therefore be a corner element within a larger wall, or part of a compact display assembled around its own geometry. EA250H8 overview

Begin with a drawing of the shape the audience will see. Show whether the display turns a corner, surrounds an object or forms a freestanding visual feature. Mark the parts of that drawing intended to use EA250H8 and the parts assigned to larger cabinets. This gives the supplier a specific combination to evaluate and prevents a quotation for a generic rectangle from becoming the starting point for a different installation.

The official page identifies stages, exhibitions and creative rental installations as applications. Documented applications

Right-angle walls and cylindrical arrangements

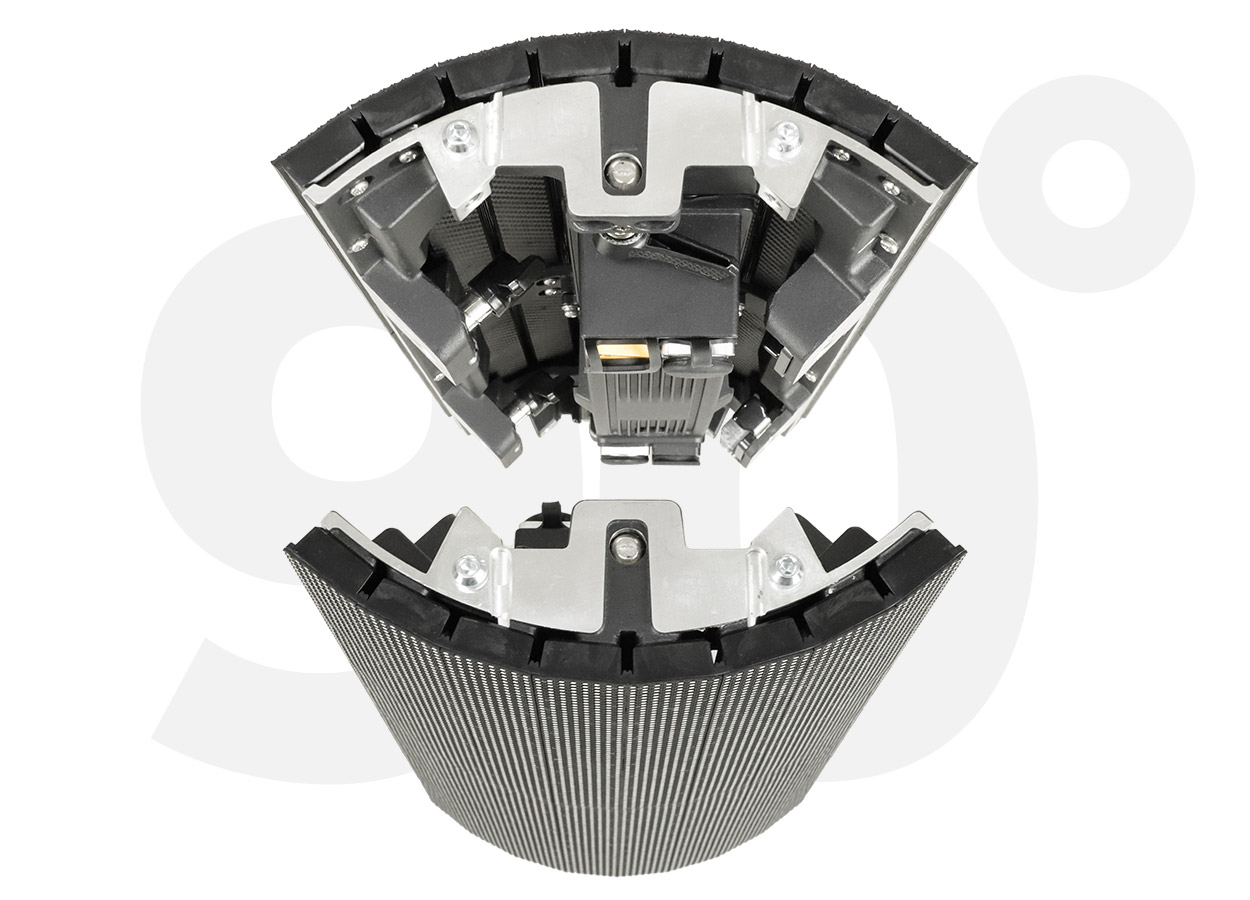

EagerLED describes the EA250H8 cabinet geometry as suitable for right-angle LED walls and corner configurations. It also states that four EA250H8 cabinets can be joined into a cylindrical display. Treat the four-cabinet statement as the documented configuration on this product page; it is not a complete dimensioned drawing for every cylinder you might propose. Corner and cylinder layouts

For a corner wall, identify each face separately in the project drawing. Label the intended content on each face and show where the display changes direction. Ask the supplier to return an arrangement drawing using the actual cabinet references in its offer. The design team can then review the image layout and the purchasing team can review the quantities against the same document.

For a cylindrical concept, provide the desired finished outline and height. Request confirmation of the proposed cabinet arrangement and the complete supporting package before treating the concept as an approved installation. Avoid adding an assumed radius or support method to a brief simply because a photograph resembles the intended shape.

The compatible-family list is useful when planning an inventory extension. Supply the full references for your existing cabinets and request approval of the actual combination. The list names cabinet families; it does not identify the configuration of every cabinet previously supplied under those names. Compatible cabinet families

Four variants with different operating specifications

The official parameter table lists two indoor variants and two outdoor variants. All four use the 250 × 500 mm cabinet size and a stated cabinet weight of 3.5 kg. The indoor P2.97 and outdoor P2.97 entries share a pitch designation but have separate model references, brightness values and protection specifications. EA250H8 parameter table

These values retain the column scope of the manufacturer’s specifications. Keep the complete model reference in the quote, the packing list and the equipment record. Describing the order only as “EA250H8 P2.97” leaves the environment-specific variant unresolved.

Across the four columns, EagerLED lists a refresh rate of at least 3,840 Hz, 14-bit grayscale and a 140° viewing angle. It lists 250 × 250 mm modules, with module resolutions that vary by pitch. The common cabinet format therefore does not mean that the complete display configuration is identical across variants. Display and module parameters

Assembly details and rear service access

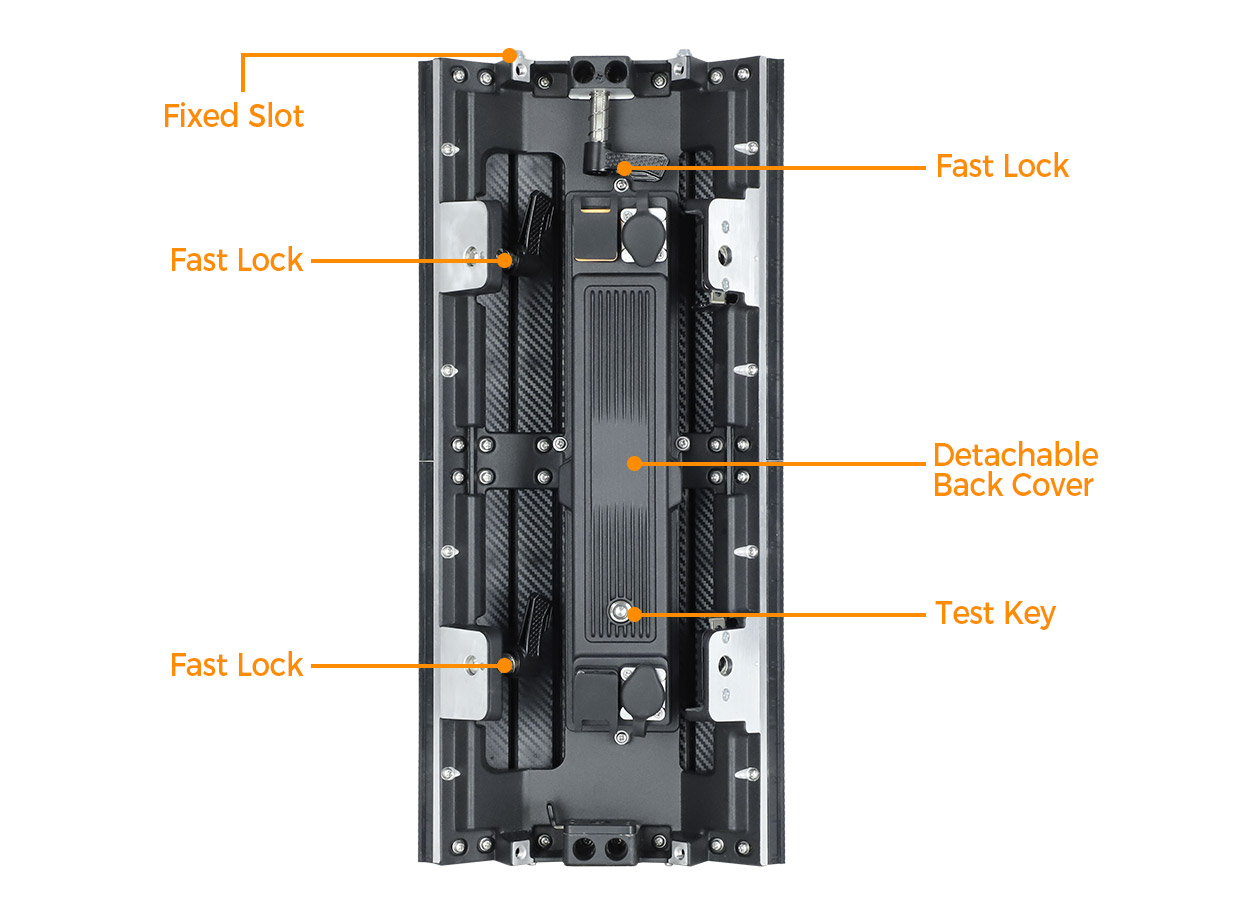

The cabinet description identifies fixed mounting slots, fast locks and a test button. EagerLED also documents a detachable rear power box with an integrated hub connection. The rear service description refers to access to power and signal components. Cabinet and service features

Ask for a demonstration using the same mixture of cabinets as the proposed package. A corner assembled with larger flat cabinets should be reviewed as that complete combination. Have the supplier identify the connecting hardware on the drawing and state which parts arrive fitted to the cabinet and which are packed separately.

For service planning, submit views of the rear of the proposed arrangement as well as the audience-facing drawing. Ask how the detachable power box is accessed in that layout and which parts must remain reachable. This is especially useful when the visual concept has several faces and an enclosed-looking interior: the service discussion needs the actual arrangement, not just the appearance shown in a rendering.

Prepare the corner-display package for quotation

The following schedule separates decisions about the visual arrangement from decisions about the supply package. It is intended for the buyer’s project brief, rather than as a list of standard EA250H8 accessories.

Separate the cabinet purchase from any requested cases, controls and installation work. The rental package cost guide provides a place to organize these cost categories. Send the final brief through the project enquiry form when you are ready for a configuration-specific quotation.

Frequently asked questions

Which cabinets does EA250H8 connect with?

EagerLED names EA500H7, EA500H8, EA500H8V and EA1000H8 on the official page. Obtain confirmation for the exact variants and configuration you plan to combine, especially when using previously purchased equipment. Compatibility statement

How many cabinets are shown for the cylindrical configuration?

The manufacturer describes a cylinder assembled with four EA250H8 cabinets. Submit the intended overall display drawing before ordering; the page does not provide a universal installation package for every cylindrical project. Cylindrical configuration

Is the rear power box removable?

Yes. The page identifies a detachable rear power box and hub connection. Ask for the relevant service instructions and confirm access in your proposed cabinet arrangement. Rear power box

Are the indoor and outdoor P2.97 versions interchangeable in a quote?

They have different model references and published specifications. EA250H8-iP2.97 is listed at 750 cd/m² and IP31; EA250H8-OP2.97 is listed at 4,500 cd/m² with IP65 front and IP54 rear protection. Retain the full reference when comparing offers. P2.97 variants
