EA500C6 Rental LED Display: Cabinets, Variants and Curved Layouts

Where the EA500C6 fits in a rental inventory

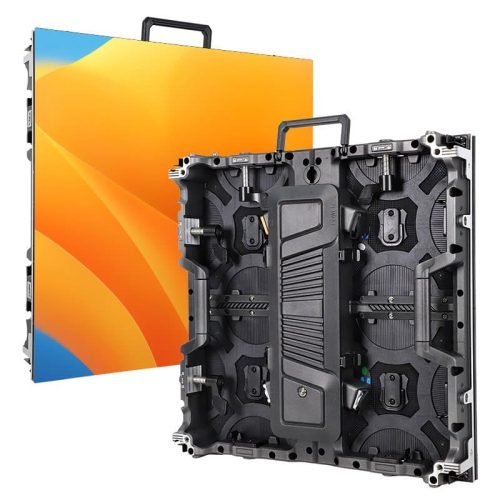

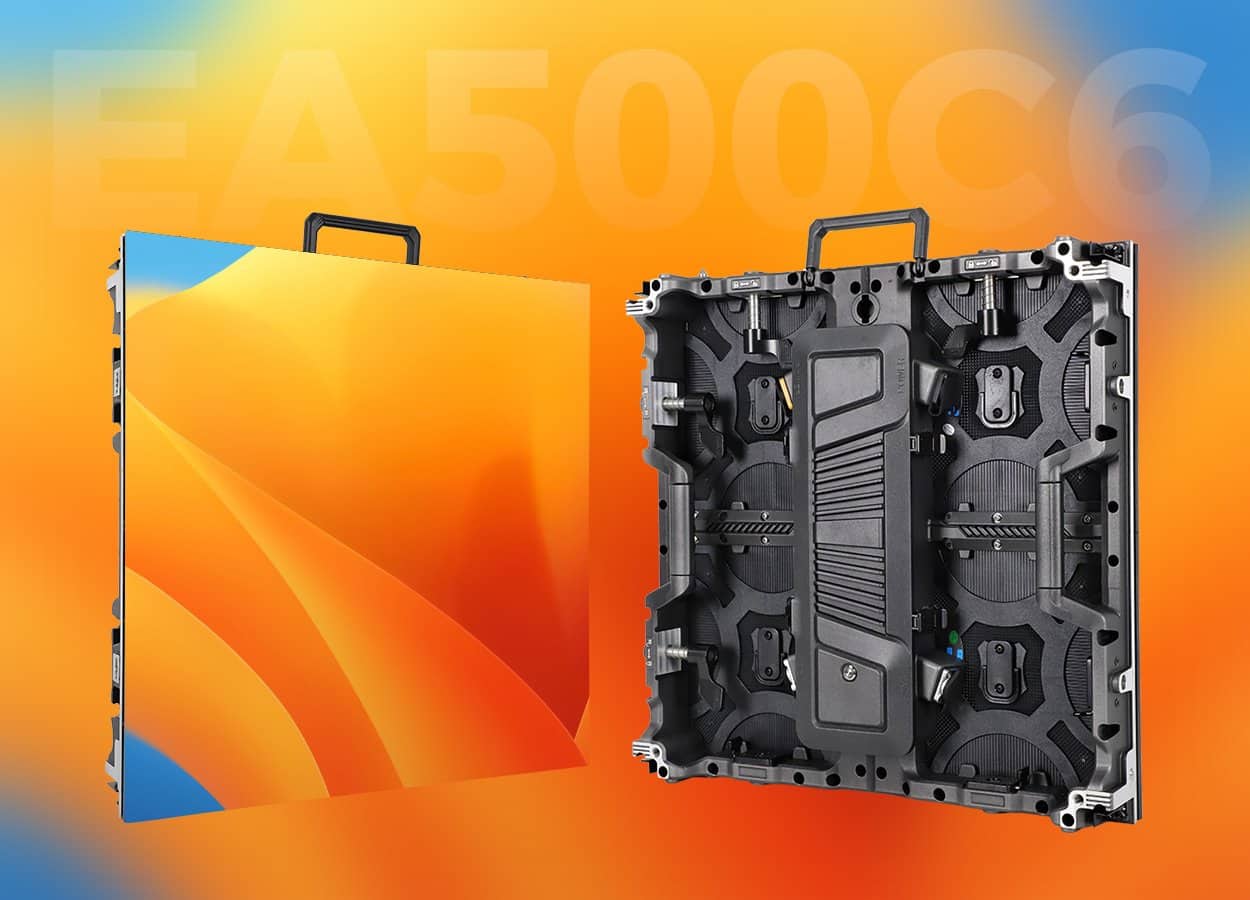

EagerLED presents the EA500C6 as a 500 × 500 mm rental display family for stages, exhibitions and conferences. Its published range separates indoor models from outdoor models, with cabinet construction and pixel-pitch choices specified for each group. A purchase therefore needs more detail than the family name alone: the order should identify the full variant and its intended venue. EA500C6 model overview

The manufacturer documents quick locks, alignment pins, corner protectors and rear access, alongside optional curved arrangements. Those details give the buyer specific features to discuss during a demonstration. They do not define the complete contents of an order, so ask for the cabinet specification and the accessory schedule as separate parts of the quotation. Cabinet features

Choose a specific indoor or outdoor variant

The indoor table lists P1.56, P1.95, P2.6, P2.97 and P3.91 configurations. Its P1.56, P1.95 and P2.6 column headings carry the GOB designation. The outdoor table lists P2.6, P2.97 and two P3.91 configurations, distinguished as 16S and 8S. Preserve those suffixes when comparing quotations; two entries described simply as “outdoor P3.91” could refer to different published specifications. Indoor and outdoor specifications

The examples below retain the exact model names and brightness values from the official tables. They are selected configurations, rather than a statement that every family member has the same output.

All values in this table come from the EA500C6 variant tables. Use them to identify a proposed configuration, then request a current specification sheet for the order. The page lists at least 3,840 Hz refresh, 140° viewing angle and 14-bit grayscale across the documented models. Those common entries should not obscure the differences between individual brightness, power and drive-mode columns. Display parameters

Give EagerLED the nearest intended audience position and examples of the content, including any small text or presentation material. Ask it to explain its proposed pitch against that brief. This avoids treating the smallest available pitch as a substitute for a documented project choice.

Cabinet assembly and repeated handling

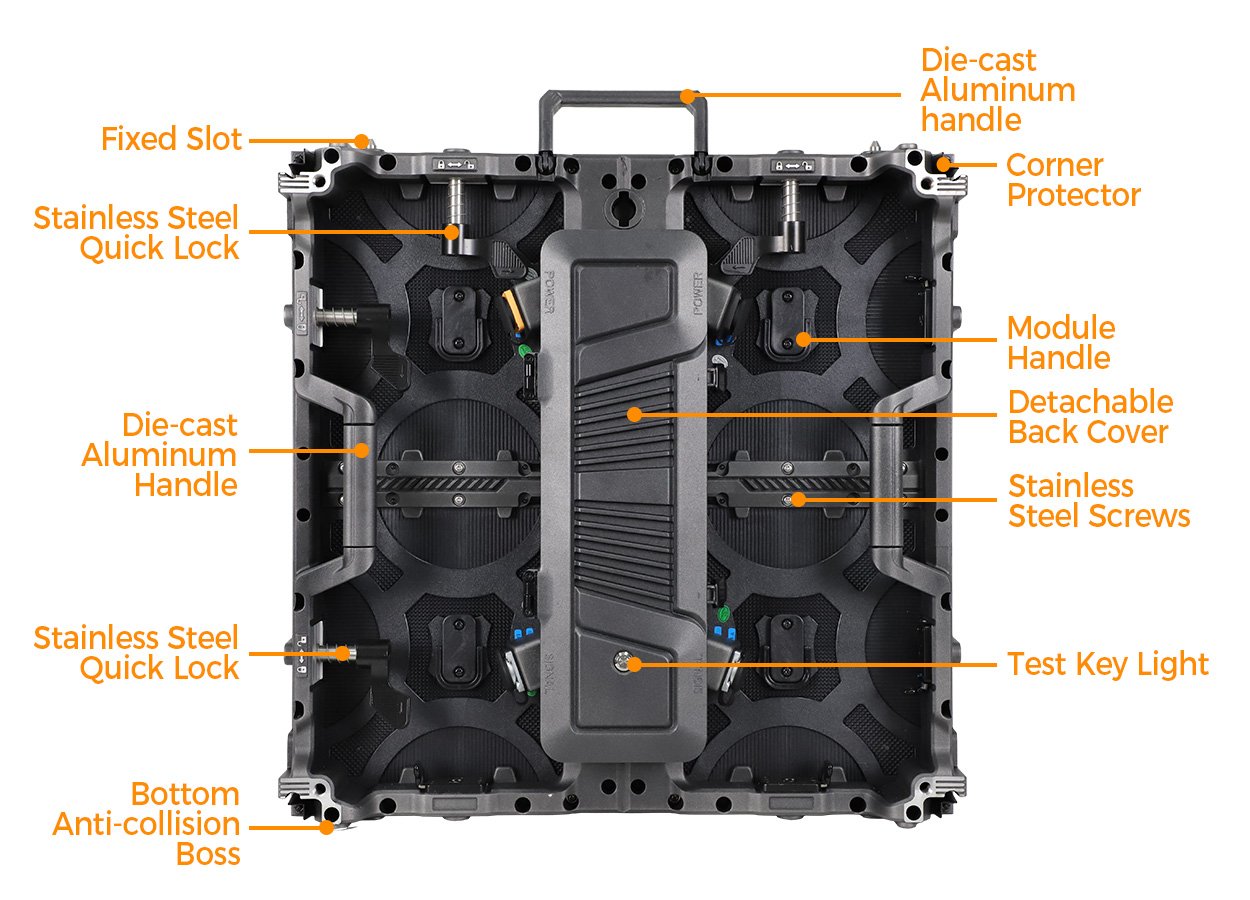

The EA500C6 uses a die-cast aluminum cabinet. EagerLED identifies positioning pins, aluminum handles, stainless steel screws and top and side quick locks as part of the cabinet design. Its description also identifies four corner protectors intended to shield the LED edges during handling between events. Assembly and handling details

Keep the manufacturer’s cabinet weight separate from the transport quotation. The published cabinet figures do not specify the weight of your complete consignment, cases or supporting equipment. Request a packing list for the actual cabinet quantity and ask the logistics provider to use that list when pricing delivery. Our rental equipment budgeting guide can help organize those purchasing categories.

Curves, mixed cabinets and irregular layouts

Optional curve locks allow the EA500C6 to form concave or convex arrangements. EagerLED also documents vertical mixed splicing with EA1000C6 cabinets and shows staggered arrangements for stepped or asymmetric screen outlines. The manufacturer specifically asks buyers to confirm matching pitch and configuration before combining the two cabinet sizes. Layout options

Describe the intended shape before requesting the package. A drawing should show the overall outline, each change of direction and the proposed positions of different cabinet sizes. If the project needs both a flat arrangement and a curved arrangement on different jobs, include both drawings. Ask for a separate hardware schedule for each layout instead of assuming that a curved example on the product page describes the standard shipment.

For an existing fleet, provide the exact model labels and configuration records of the cabinets you already own. A general statement that two product families support mixed splicing is not a confirmation for every previously supplied cabinet. Request written confirmation for the particular combination and retain it with the order documents.

Rear access and service preparation

The manufacturer describes an opening rear cover that provides access to the power and control area. It also describes cabinet ventilation and rear inspection access. This is the documented maintenance arrangement to discuss for EA500C6; the source does not establish a front-service procedure for the configuration you intend to buy. Rear maintenance arrangement

Include a view of the space behind the proposed wall in your project information. Ask the supplier to show the access needed for its maintenance procedure and identify any equipment that must move before that procedure can begin. For temporary events, keep those requirements with the layout documentation that travels to the venue.

Turn the model choice into a comparable quotation

Once a variant and layout are selected, use a short schedule to separate confirmed product details from outstanding commercial decisions. The following table is a purchasing checklist; it does not describe standard accessories or services supplied with every EA500C6 order.

Send the proposed drawings and schedule through the project quote form. Keep the delivery date as a requested project requirement until EagerLED confirms it for the actual order.

Frequently asked questions

Is every EA500C6 an outdoor display?

No. The official page has separate indoor and outdoor tables. Its indoor configurations are listed as IP31. Specify the environment and full model reference, and obtain the protection details for that exact configuration. Variant specifications

Does the curved option come with every cabinet order?

EagerLED describes the curve locks as optional. Ask the quotation to name the curve hardware and cover the layout you intend to build; a family-level curved installation description does not establish the contents of an individual shipment. Optional curve locks

Can EA500C6 and EA1000C6 be combined?

The official EA500C6 page documents vertical mixed splicing with EA1000C6 and calls for matching pitch and configuration to be confirmed. Submit the exact proposed cabinet combination for review. Mixed cabinet arrangements

What should a first price request contain?

Include the intended environment, screen drawings, viewing position, content examples, cabinet quantity and delivery destination. State whether the request covers cabinets alone or a larger operating package. This gives the supplier a defined scope to price and leaves a clear record of the decisions still to be made.
