Plan the curve as part of the product selection

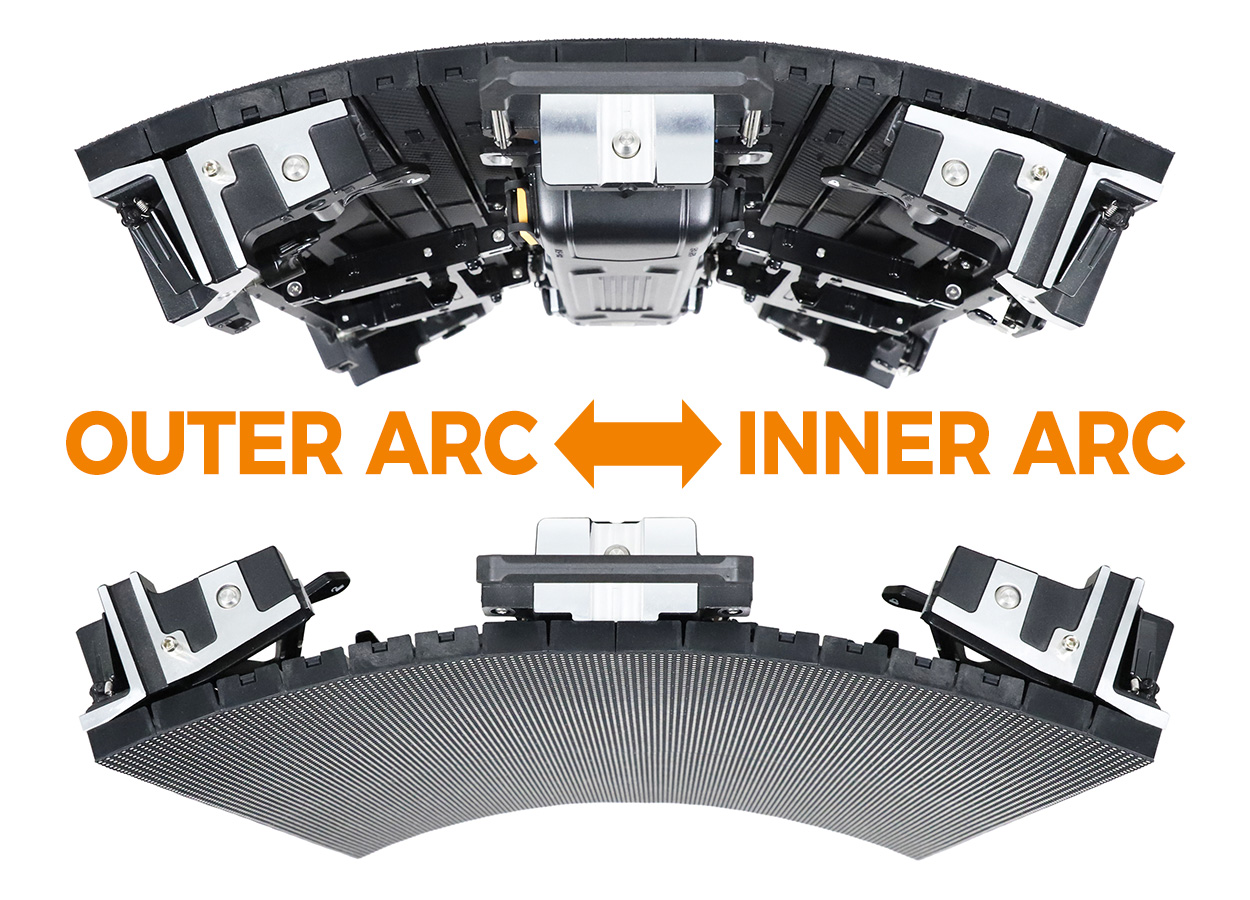

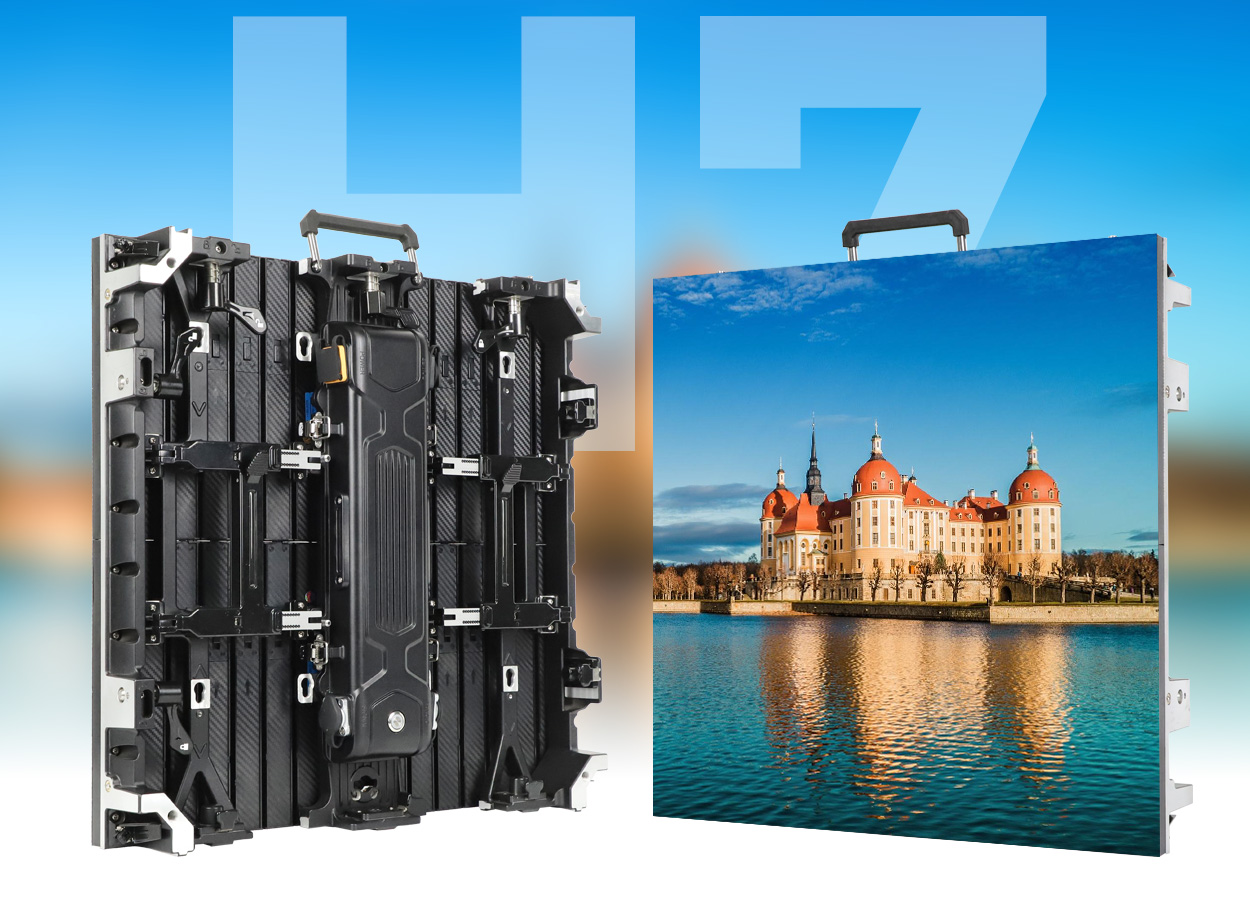

The EagerLED EA500H7 is a flexible rental display with 500 × 500 mm cabinets. EagerLED describes flexible modules and a sliding adjustment mechanism for setting the cabinet curve, with concave, convex and cylindrical arrangements among the supported shapes. It identifies stage backdrops, exhibitions and event video walls as applications. EA500H7 product overview
For this model, a useful enquiry begins with the desired shape. Show the viewing direction and the complete outline, then identify any places where a curved section meets a different display section. Send the same drawing to the content designer and the equipment supplier. That gives both parties a common description of the object they are planning.
Do not select a radius from a photograph. EagerLED asks buyers to provide their required radius and dimensions and to confirm the permitted bending range for the selected configuration. Retain the supplier’s response with the approved arrangement drawing. Curve adjustment requirements
Match the exact variant to the venue brief
The parameter table lists three indoor and three outdoor versions. All six use the 500 × 500 mm cabinet size, 250 × 250 mm modules and a stated cabinet weight of 7 kg. Indoor P1.95 and P2.6 model names carry the GOB designation; the indoor P2.97 entry is listed separately without it. EA500H7 variant table
| Model in the official table | Published brightness | Published protection grade |
|---|---|---|
| EA500H7-iP1.95(GOB) | 750 cd/m² | IP31 |
| EA500H7-iP2.6(GOB) | 750 cd/m² | IP31 |
| EA500H7-iP2.97 | 750 cd/m² | IP31 |
| EA500H7-OP2.6 | 4,500 cd/m² | IP65 |
| EA500H7-OP2.97 | 4,500 cd/m² | IP65 |
| EA500H7-OP3.91 | 4,800 cd/m² | IP65 |
The values above follow the exact columns of the published specifications. The indoor and outdoor P2.6 entries should not be collapsed into a single model choice. Keep the environment prefix, pitch and GOB designation together throughout the quotation.
The table gives a refresh rate of at least 3,840 Hz, 14-bit grayscale and a 140° viewing angle across these variants. It also lists different module resolutions and drive modes for individual configurations. Common and variant parameters
Assembly and connections to other rental cabinets

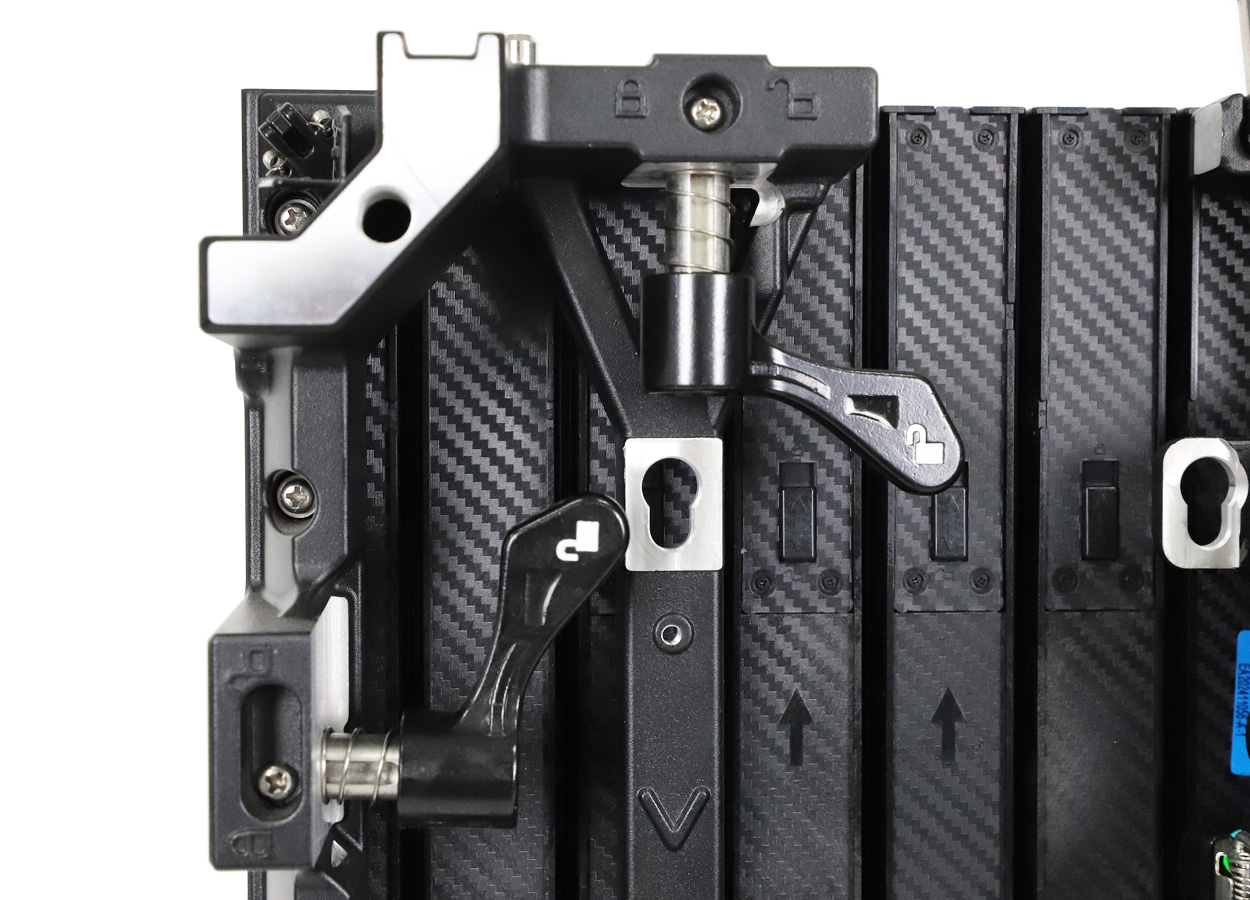

The EA500H7 has edge locks for joining adjacent cabinets. The official page also describes combinations with EA500H8, EA500H8V and EA1000H8. It calls for confirmation of pitch, cabinet connection and control configuration before combining models. Assembly and mixed layouts
That compatibility statement gives a starting point for a mixed display proposal. It does not settle the details of an existing fleet. Send model labels and the specification records for cabinets already owned, along with the new arrangement drawing. Ask for a written response covering the particular combination rather than an informal confirmation that the family names are compatible.
During a sample assembly, follow the arrangement you expect the crew to repeat. Have the supplier identify the joining hardware and explain how the curve is set for the approved drawing. Record the equipment needed for the configuration and where it appears in the quotation. If the demonstration uses additional accessories, make their supply status explicit.
EagerLED identifies four foldable corner protectors on each cabinet. These are intended to protect the LED edges during rental handling. Include their operation in the handover demonstration and distinguish the cabinet’s handling features from the cases and packing materials specified for your order. Corner protection
Rear electronics and service access
The manufacturer describes a rear power box with hub connections and buckle fasteners for removal and reinstallation. Its service guidance asks buyers to allow working space behind the wall and confirm access for the chosen cabinet configuration. Rear power-box service
A curved display should have a service drawing as well as an audience-facing drawing. Mark the proposed access route and show nearby structures or scenery. Ask EagerLED to review how technicians reach the rear assembly in that layout. For a cylindrical proposal, include views of the interior and any proposed access opening in the information sent for review.
Request spare-component references for the exact model variant. A spare-parts proposal should distinguish complete assemblies from individual components and state the quantity of each. If technical training is part of the purchase, ask which maintenance tasks the handover will cover and which documents accompany it.
Organize a useful demonstration and quotation
Before requesting a final total, agree on what the supplier should demonstrate. The questions below are editorial planning suggestions, not additional EA500H7 performance claims.
| Layout or task | Information to provide | Response or demonstration to request |
|---|---|---|
| Concave backdrop | Audience direction and desired curved outline | Approved radius and cabinet arrangement |
| Convex feature | Views of the outward-facing display | Configuration drawing and content layout |
| Cylindrical display | Overall dimensions and proposed access | Cabinet quantity and service arrangement |
| Mixed cabinet wall | Exact references for each cabinet family | Confirmation of the complete combination |
| Repeated rental use | Typical layouts and the team’s handling workflow | Assembly, packing and service handover |
Keep the price comparison organized around the configuration that was demonstrated. Note the exact model, cabinet quantity and agreed shape. List the requested controls, connecting equipment and transport package as separate entries. This prevents an apparent cabinet-price comparison from hiding different supply scopes.
Our rental inventory cost guide covers the wider purchase categories. Use the project quote form to send the curve drawings, content examples and delivery destination. Treat the date you request as a project requirement until the supplier confirms its delivery commitment for the defined package.
Frequently asked questions
What makes the EA500H7 a flexible rental model?
EagerLED identifies flexible LED modules and a sliding curve adjustment mechanism. It documents inward, outward and cylindrical arrangements and asks buyers to confirm the bending range for the selected configuration. Flexible cabinet mechanism
Are all six variants the same weight?
The current specification table lists 7 kg for each of its six EA500H7 cabinet variants. That figure refers to the cabinet. Request a packing list for the weight and dimensions of the complete shipment. Cabinet weight entries
Can I specify a particular curve radius immediately?
You can supply the required radius as part of the design brief. The manufacturer asks for it to be reviewed together with the viewing direction and wall dimensions, and for the permitted bending range to be confirmed before assembly. Curved layout review
Which models can be included in a mixed wall?
The EA500H7 page names EA500H8, EA500H8V and EA1000H8. EagerLED requires the actual pitch, cabinet connection and control configuration to be checked for the proposed combination. Compatible rental families
What maintenance route is documented?
The official description covers a removable rear power box with hub connections and buckle fasteners. Include rear working access in the layout sent to the supplier, and request the service procedure for the ordered configuration. Rear service description
