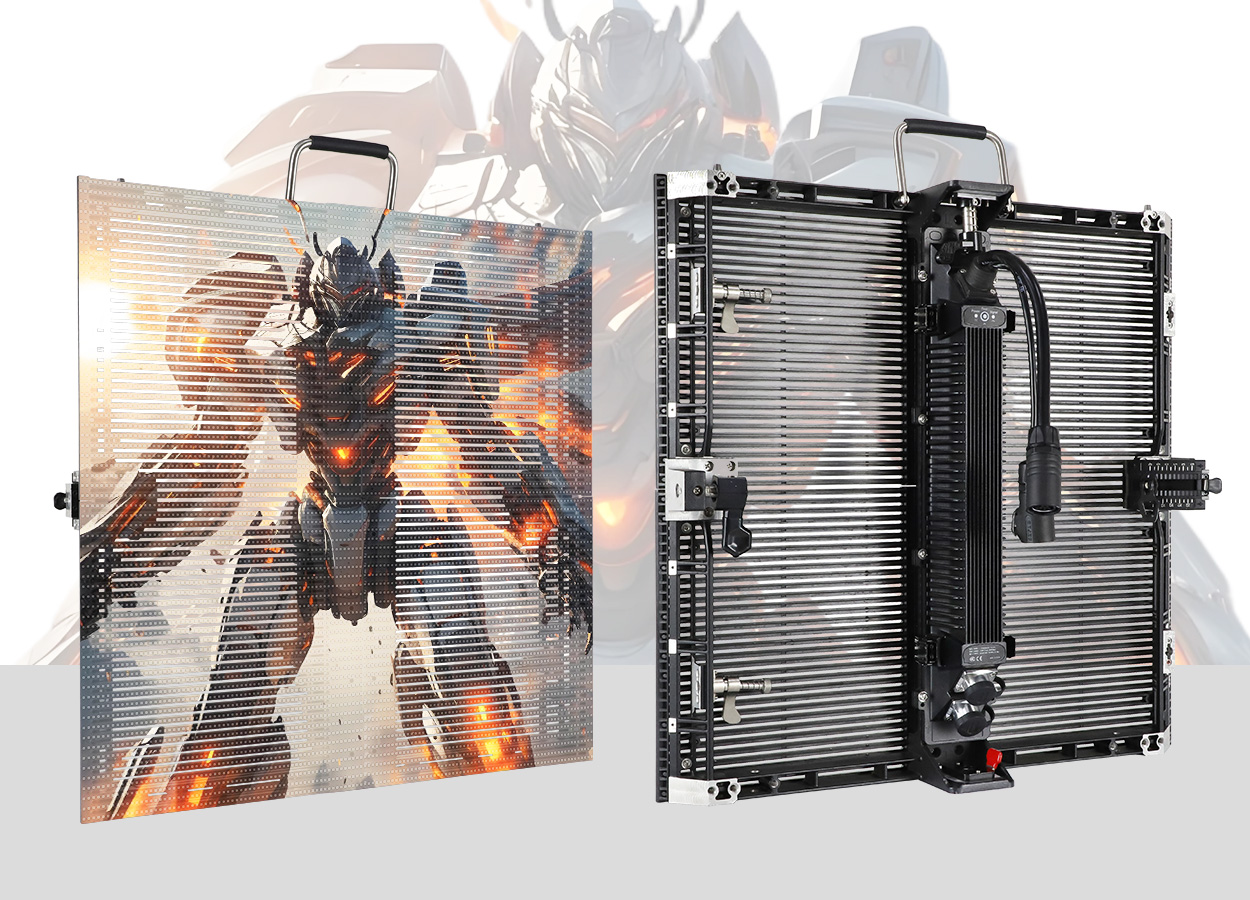

EA500TOR1 Outdoor Rental Transparent LED Screen

EA500TOR1 is EagerLED’s outdoor rental transparent LED screen built around a 500 × 500 mm cabinet weighing 5.7 kg. The manufacturer positions it for outdoor events and temporary installations, with an open display structure, adjustable cabinet angles and the option to combine it with the larger EA1000TOR1 cabinet. The published specification includes 60% transparency, 4,500 cd/m² brightness and a refresh rate of at least 3,840 Hz. Official product information

For a rental inventory purchase, start with the shapes and cabinet combinations that the business expects to reuse. A rectangular screen brief and a column-shaped display brief should identify their respective layouts before accessories, control equipment and transport requirements are compared. The useful purchasing question is whether the complete proposed system covers those layouts, rather than whether one cabinet photograph resembles a previous event.

Cabinet format and documented specifications

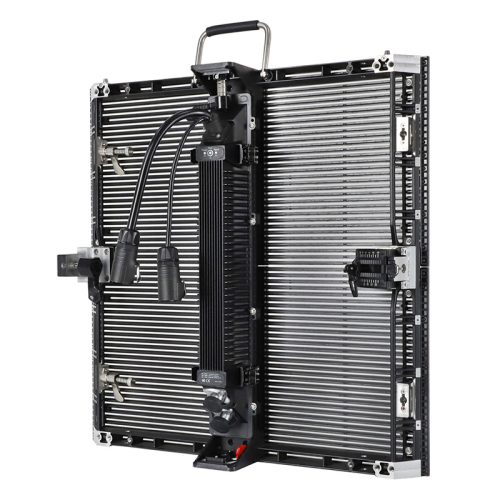

The principal EA500TOR1 format is 500 × 500 mm. EagerLED gives its cabinet weight as 5.7 kg and describes a precision curve lock with a range from −10° to +15°. These figures belong to EA500TOR1; they should remain separate from the specifications of any larger cabinet used alongside it. Cabinet specifications

These values are documented in the visible product description. The specification section also names EA1000TOR1, so a quotation should identify each ordered model explicitly. A combined-family heading does not mean every value under that heading applies to both cabinet formats. Model scope

For purchasing, keep the cabinet schedule as a separate document from the finished screen drawing. List the quantity of each model, the proposed arrangement and the spares associated with that arrangement. This gives the supplier a concrete configuration to approve and gives the buyer a useful reference when checking the delivery.

Transparent displays and event content

The source describes an open cabinet structure that permits views and airflow through the screen. It pairs 60% transparency with 4,500 cd/m² brightness and identifies outdoor events and temporary installations as the intended application. Transparency and application

Consider both the displayed content and the view behind the screen when preparing a demonstration brief. Useful sample material includes the actual event logo, the planned background scenes and any text that must remain readable. Photograph or record the proposed viewing positions so a discussion about transparency refers to the same event layout throughout the project.

Do not treat the transparency percentage as a substitute for a site-specific structural or installation assessment. The product description establishes the display’s published transparency; it does not provide a complete support design for a particular stage, venue or exposure. Keep the visual demonstration and the installation review as two distinct decisions, with their respective acceptance criteria written down.

Curves and compatible cabinet combinations

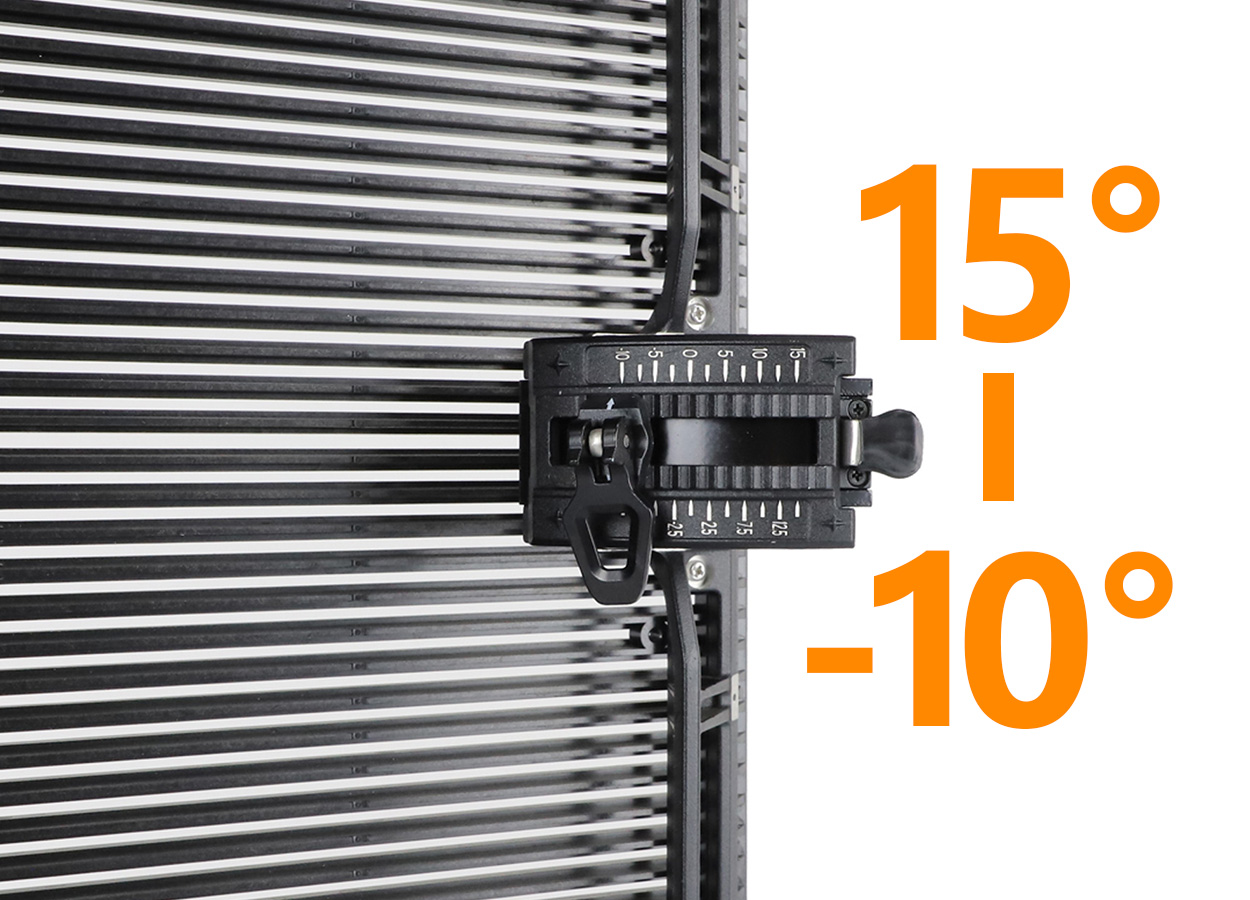

EA500TOR1’s rotary curve-lock control supports concave and convex arrangements within the stated −10° to +15° range. The manufacturer also describes flat screens, square columns and other modular configurations assembled with EA1000TOR1 cabinets. The named compatible cabinet is EA1000TOR1 in a 1000 × 500 mm format. This is a compatibility relationship between two models. Curve lock and cabinet compatibility

Supply a drawing of each intended configuration, showing where the cabinet format changes and where the display changes direction. Ask for the proposed connection arrangement to be identified on that drawing. A list reading only “transparent rental display” leaves the most important shape decisions unresolved.

For a mixed inventory, ask the quotation to distinguish shared items from model-specific items. Keep compatible cabinets, replacement modules, connection components and packing arrangements in separate lines where appropriate. Do not infer that every accessory is interchangeable merely because the cabinets can be combined. The order should state the supported combination that will actually be supplied.

Outdoor installation and service planning

EagerLED assigns EA500TOR1 an IP65 protection rating and an operating range of −20°C to +60°C. Its visible description presents the cabinet as an outdoor rental product and describes repeated setup, alignment and maintenance as part of that use. Outdoor use and rental design

Prepare an installation brief that records the venue, intended screen position, shape and operating environment. Ask the project supplier to identify the mounting arrangement and any supporting equipment in its proposal. A product rating is useful evidence about the cabinet, but it does not document every part of the assembled event system or approve a particular site design.

The service handover should be equally specific. Ask for the module-removal procedure, access arrangement, tools, replacement parts and troubleshooting information for the ordered configuration. Where the source does not describe a particular service method, record it as an open project item instead of assuming it from another rental cabinet. Consider requesting a demonstration with the actual cabinet combination before accepting the inventory.

Build a quotation around the planned jobs

The following is a buyer’s planning checklist, rather than a claim about standard accessories or included services. It helps turn an event concept into an itemized request.

Compare offers against that same brief. If a supplier changes the cabinet mix, layout or service scope, have the revised proposal identify the change before comparing totals. Our guide to comparing LED screen quotes offers a way to organize these differences. You can also use the project quote form to describe the intended layouts without assuming a price from the model name.

EA500TOR1 questions

Is EA500TOR1 an outdoor rental product?

Yes. The official page identifies outdoor events and temporary installations as its intended use, and publishes IP65 protection and a −20°C to +60°C operating range. The complete installation still needs a project-specific proposal. Outdoor scope

Which larger cabinet is documented as compatible?

The page names EA1000TOR1 1000 × 500 mm cabinets. Keep that identity distinct from EA500TOR1 and request an approved layout for the proposed combination. Compatibility

Can it form concave and convex screens?

The manufacturer describes both forms and specifies a curve-lock adjustment range of −10° to +15°. Ask for the intended shape to be shown in the cabinet layout rather than extrapolating beyond that range. Curve adjustment

Does the cabinet specification define a complete rental package?

It defines product features, not the contents of an unspecified order. Request a bill of materials covering the chosen cabinet combination, control equipment, installation components, service items and transport arrangements before treating two proposals as comparable.
