EA250INV Indoor Invisible LED Display for Glass

EA250INV is an indoor transparent LED film display for glass walls, storefronts and similar architectural surfaces. EagerLED describes a 2 mm module profile, direct mounting on suitable indoor glass and three pixel-pitch options: P3.91, P6.25 and P10.42. Transparency is configuration-dependent, ranging from 70% to 90%. The “invisible” product name therefore describes a transparent display approach; it should not be read as a promise that every configuration disappears under all viewing conditions. Official product information

A useful project brief begins with the glass itself and the intended view through it. Record the panes to be used, the display boundaries, the preferred content and where people will view the installation. Those details make it possible to discuss module arrangement and image requirements together, rather than choosing a pitch first and fitting the project around it afterward.

Module sizes and configuration choices

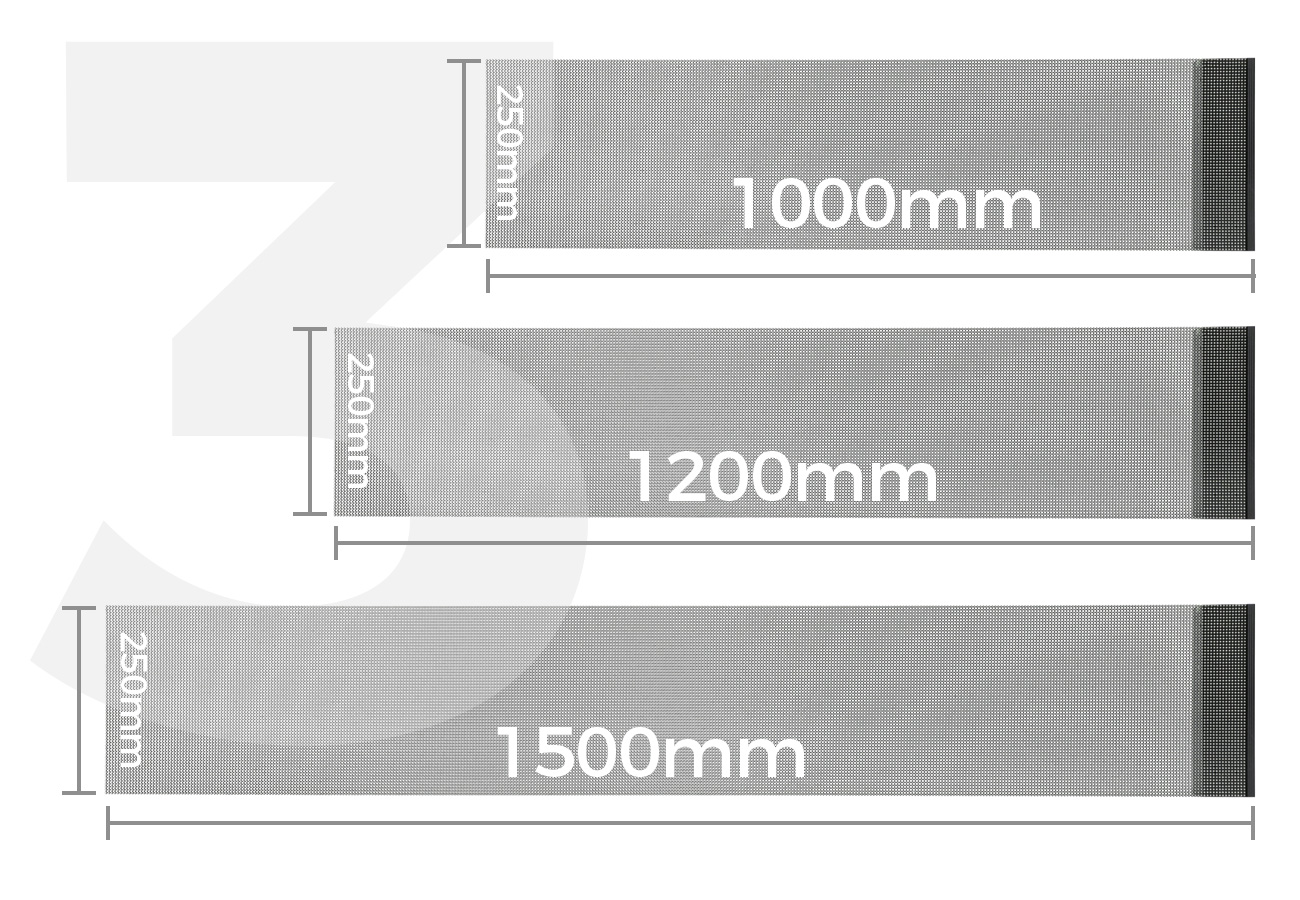

The product page lists 1000 × 250 mm, 1200 × 250 mm and 1500 × 250 mm modules. It also states that available combinations vary by pixel pitch. This is an important limitation: three sizes and three pitches do not establish that every size is supplied in every pitch. Module configuration scope

The table summarizes the visible manufacturer description without assigning a range endpoint to a specific pitch. Configuration details

Ask for a configuration schedule that names the pitch and module size together on every line. Where more than one arrangement is proposed, request separate drawings or clearly marked alternatives. This keeps the evaluation focused on complete options and avoids combining a favorable value from one configuration with the dimensions or weight of another.

Evaluate transparency with the actual content

EagerLED positions EA250INV for retaining light and views through indoor glass while presenting digital content. The documented transparency range is 70%–90%, and the page describes retail windows, shopping malls, exhibition halls, museums, showrooms and creative commercial displays as application examples. Transparency and applications

Prepare a short content set that represents the intended use, including the smallest text, the main brand elements and the typical background imagery. Review that content from the positions that matter to the project. A demonstration brief should also identify the view that the owner wants to retain through the glass, so image presentation and architectural appearance are considered in the same review.

Treat the published maximum as one end of a range, not as the default for every order. If the proposal uses a particular transparency figure, have the supplier associate it with the selected pitch and module arrangement. Our pixel-pitch planning guide provides a way to structure a viewing test without substituting a universal distance rule for the project’s actual content.

Glass mounting and the complete installation

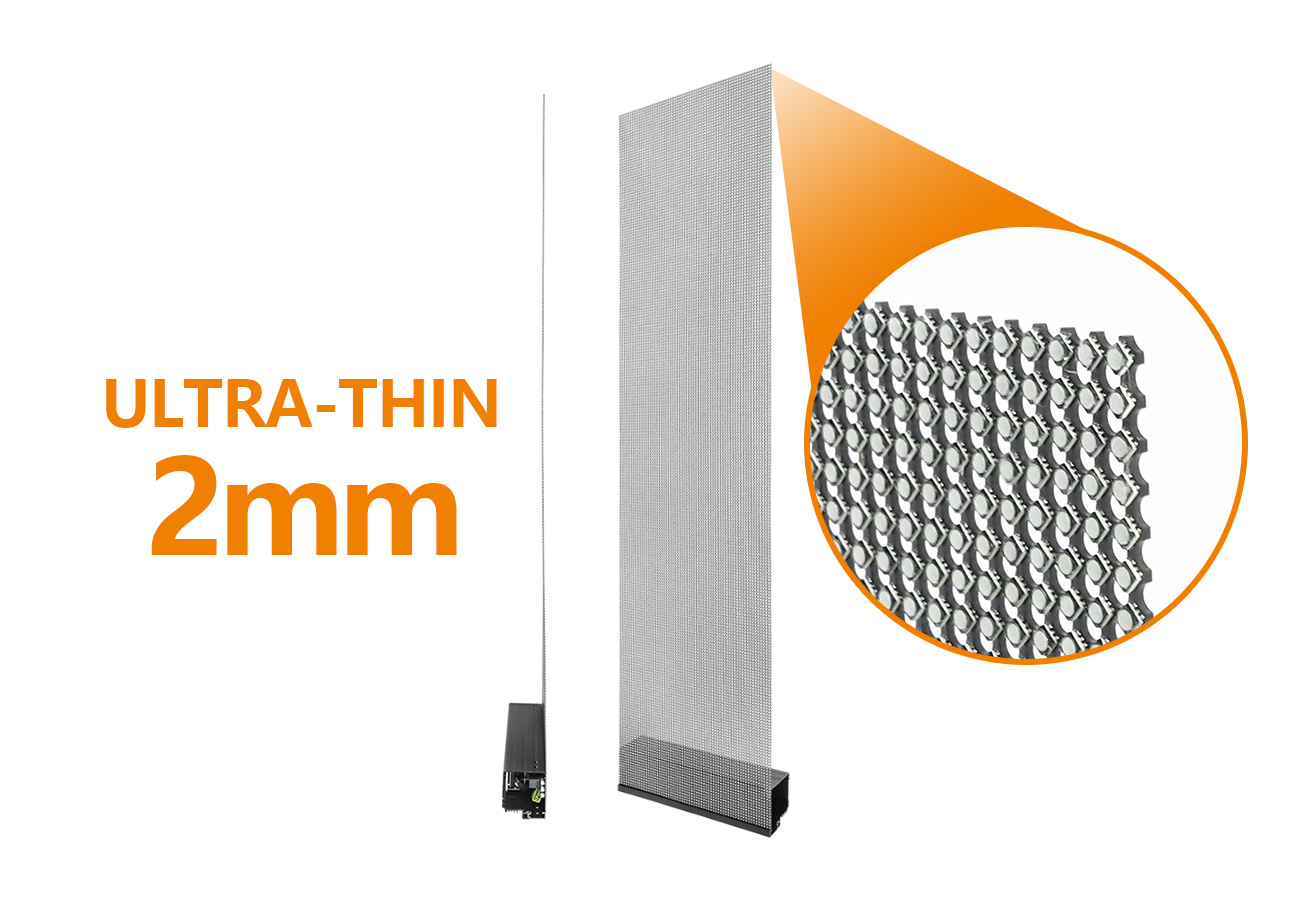

The official description says EA250INV mounts directly to suitable indoor glass and does not require a conventional steel support frame. Its 2 mm profile and approximate 1.3–1.5 kg module weight are presented as features of the film format. Mounting and module construction

Specify the glazing layout and the intended display position before accepting a mounting proposal. Ask the supplier to define what makes the actual glass suitable and to provide the installation procedure for the selected modules. Do not extend “direct mounting” into a claim that every glass type, finish or site condition has already been approved.

The module dimensions also do not describe all equipment in a complete display system. Request a drawing that locates the display sections, connection points and associated control and power equipment. Keep the responsibilities for preparation, installation and commissioning explicit. This makes the owner’s architectural brief and the installer’s equipment schedule easier to reconcile before the installation is fixed in place.

Visual specifications and operating scope

The page publishes brightness from 1,500 to 4,500 cd/m², contrast up to 9,000:1, 16-bit grayscale, a 140° viewing angle and a refresh rate of at least 3,840 Hz. These values are described for the EA250INV range; the visible prose does not supply a complete pitch-by-pitch assignment for every figure. Visual specifications

Have the quoted configuration list its own brightness and transparency figures, with the same units and qualifiers as the supporting documentation. Avoid reducing a range to its highest endpoint in a purchase order. If a visual requirement is important to the owner, include it in the demonstration and acceptance brief instead of assuming that one headline number answers every viewing question.

The source identifies this as an indoor product. Preserve that application boundary when discussing a window that faces an outdoor audience: the viewing direction does not, by itself, change the documented installation scope. For the actual location, request the applicable environmental, power and maintenance requirements rather than borrowing them from an outdoor transparent display.

Service and purchasing decisions

Use the following as an enquiry checklist. These are recommended project documents and decisions, not assertions that an unspecified package already includes them.

For service planning, ask which tasks the local operator can perform and which require the supplier or an installer. Request a replacement-parts schedule tied to the selected configuration and preserve the final layout with the handover documents. The product description establishes direct glass mounting, but it does not provide every detail of a future site’s replacement procedure.

When alternatives are offered, compare them using the same display boundaries and content brief. Record differences in module size, pitch and scope before comparing the total. The quote comparison guide can help organize that review, and the project enquiry form provides a place to describe the glass installation and intended content.

EA250INV questions

Is 90% transparency standard for every configuration?

The visible source gives a 70%–90% range and says transparency varies by pitch and configuration. Ask for the value assigned to the proposed configuration. Transparency scope

Are all three module sizes available at every pixel pitch?

The page explicitly states that available combinations vary by pixel pitch. Request the supplier’s current pitch-and-size schedule rather than assuming every combination exists. Size options

Does direct mounting mean the complete system is only 2 mm thick?

The 2 mm figure describes the module profile. The page’s direct-glass-mounting statement does not define the dimensions or positions of all other equipment in a complete installation. Module profile

Is EA250INV the same product as another flexible film screen?

Use the exact EA250INV identity and its official configuration information when ordering. A similar transparent-film description does not establish interchangeable modules, specifications or installation procedures. Keep the approved model and configuration on the quotation and delivery documents.
