EA250WH3 Indoor LED Wall: Cabinet Layout and Buying Guide

A wall family for measured indoor spaces

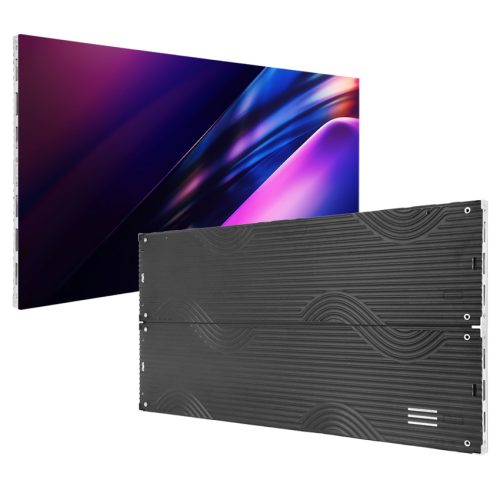

Choose the EA250WH3 when its cabinet grid and service arrangement fit the room you are designing. The manufacturer describes a 33 mm indoor cabinet with full front maintenance, HUB module connections and four available formats. Its stated applications include home theaters, advertising displays and retail interiors. Those examples establish the intended use; they do not replace checking the actual room and the content viewers need to read. EA250WH3 details.

The useful starting point is an elevation showing the display boundary, wall construction and nearby furniture. Record where viewers will stand or sit, especially the closest normal position. A retail promotion viewed across a shop and detailed presentation text viewed at a desk should be evaluated with different sample content, even if both fit the same physical wall.

Keep the surrounding finish in the design discussion. Trim, a recessed border or a fixed counter can obstruct module removal from the front. The EA250WH3’s thin cabinet can help with a shallow wall, but the mounting system and working access still need space. Our indoor wall budget explains why the complete installation scope matters when comparing proposals.

Specification table by pitch

EagerLED’s table lists seven EA250WH3 pitch variants. Every column uses a 250 × 250 mm module, while its pixel matrix changes with pitch. The table below preserves those variant relationships so a buyer can compare the appropriate module resolution and brightness without mixing values from different columns.

Across these columns, the source lists a refresh frequency of at least 3840 Hz, a 160° viewing angle and optional 14/16-bit grayscale. It gives 350 W/m² maximum power and 100–200 W/m² average power, with AC90–264 V, 47–63 Hz operation. These are published specifications, not an energy-use guarantee for a particular playlist or brightness setting. Variant specifications.

The source identifies this family as IP31 and for indoor use. An outdoor shop frontage exposed to rain is a different requirement from a display installed inside a window. State the actual location in the inquiry rather than assuming that an operating-temperature entry establishes weather resistance.

Use the pixel pitch guide to prepare a viewing test. Ask to see the smallest text and any fine lines at the proposed physical size. Record the selected pitch and final pixel dimensions in the order so artwork can be prepared for the intended canvas.

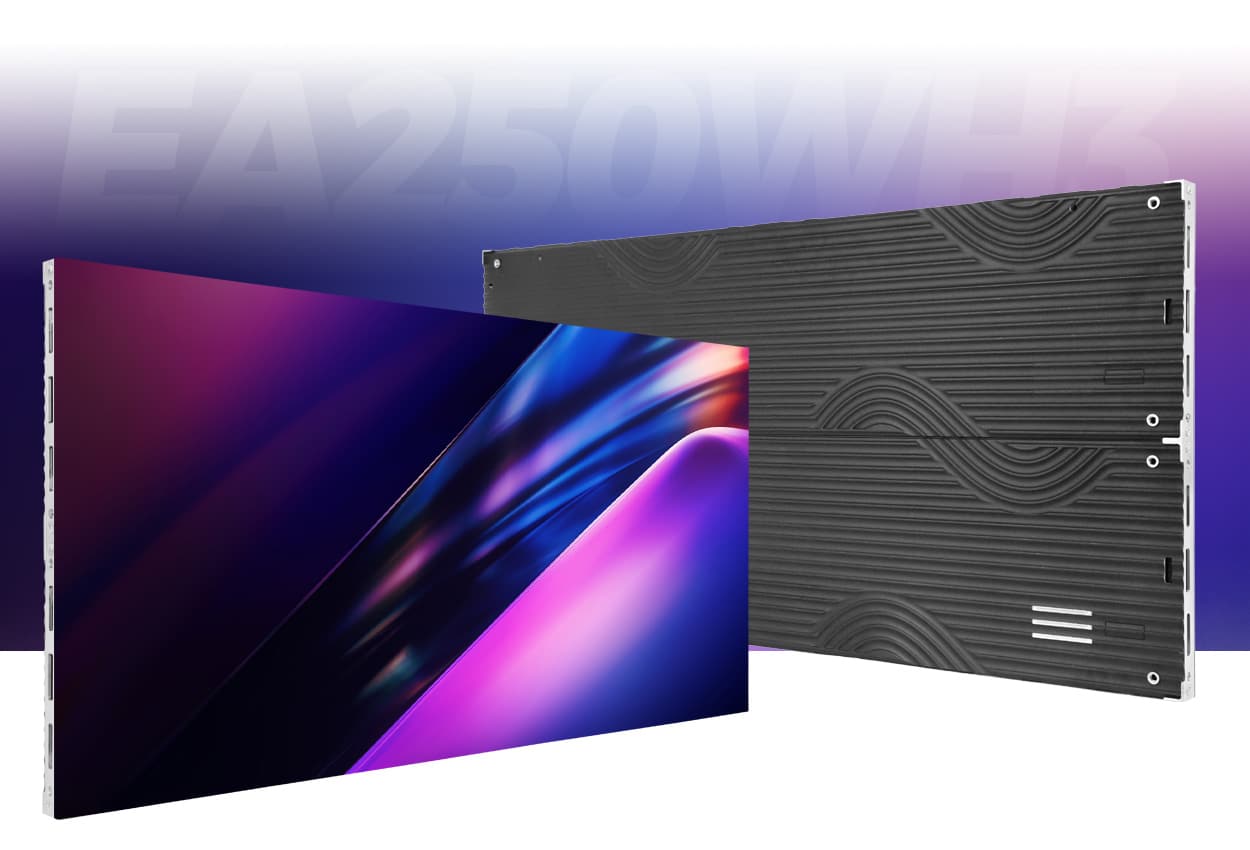

Four cabinet sizes and their implications

The EA250WH3 has three 250 mm-high cabinet widths and one 500 mm-high format. It does not document every possible combination of those widths and heights. In particular, the four listed formats should not be expanded into a six-format family simply because they share the same module size.

The weight entries follow the corresponding format order in the manufacturer’s table. They exclude the rest of the installed assembly. Request a complete weight schedule that includes the support frame and any additional equipment mounted to it.

Draw a cabinet grid before deciding that a nominal screen size fits. For example, two 1000 × 500 mm cabinets across and two up give a 2000 × 1000 mm rectangle. This is a dimensional example, not a structural recommendation. The display supplier and installer must confirm the connection arrangement and fixing details for the actual project.

Allow for the finished border as well as the illuminated area. An architectural opening can be larger than the active display, and a decorative frame may need a removable section for service. Have the final drawing distinguish the image dimensions, cabinet envelope and visible surround rather than referring to all three as the screen size.

Mounting, connections and maintenance

EagerLED documents wall mounting, hanging and pillar mounting, with right-angle and column-shaped configurations. Request the drawing for the arrangement you intend to build. A flat-wall proposal does not provide the corner detail for a wraparound column or the suspension details for a hanging assembly. Mounting options.

The source calls the internal design a HUB connection and also uses the heading “Wireless Connection.” In that context, the description concerns connections between modules and the cabinet. It should not be read as a promise of wireless video delivery, wireless power or a cable-free installation. Ask for the complete system wiring diagram, including the incoming signal and power routes.

Full front maintenance is useful where rear access is limited. Plan enough working room for the specified removal tool and for a technician to hold a module safely. Ask which internal parts can be replaced through the front and request a demonstration of the sequence before the site is handed over.

Retain the agreed spare-parts list, configuration files and a labeled cabinet layout. If the display sits above shop fittings or close to furniture, include the method of reaching the upper rows in the service plan. Our maintenance planning guide covers the costs and responsibilities that are easy to omit from a hardware-only proposal.

Prepare a comparable purchase specification

An EA250WH3 inquiry should name the pitch, required cabinet arrangement and intended content. Add the room dimensions, ambient light conditions and the nearest viewing position. Give the supplier photographs of the wall and identify who will provide the frame, electrical work and commissioning.

Request a breakdown for the cabinets, control equipment, spares, packing and delivery. Ask the supplier to state the selected grayscale configuration and to confirm the electrical requirements against the ordered model. Use the quote comparison guide to check that competing proposals include the same scope.

No current stock level, delivery date or selling price is established by the technical source used for this page. A useful next step is a project-specific quote request with the drawing and sample content attached through the available inquiry process. Confirm the offered configuration in writing before approving production.

EA250WH3 questions

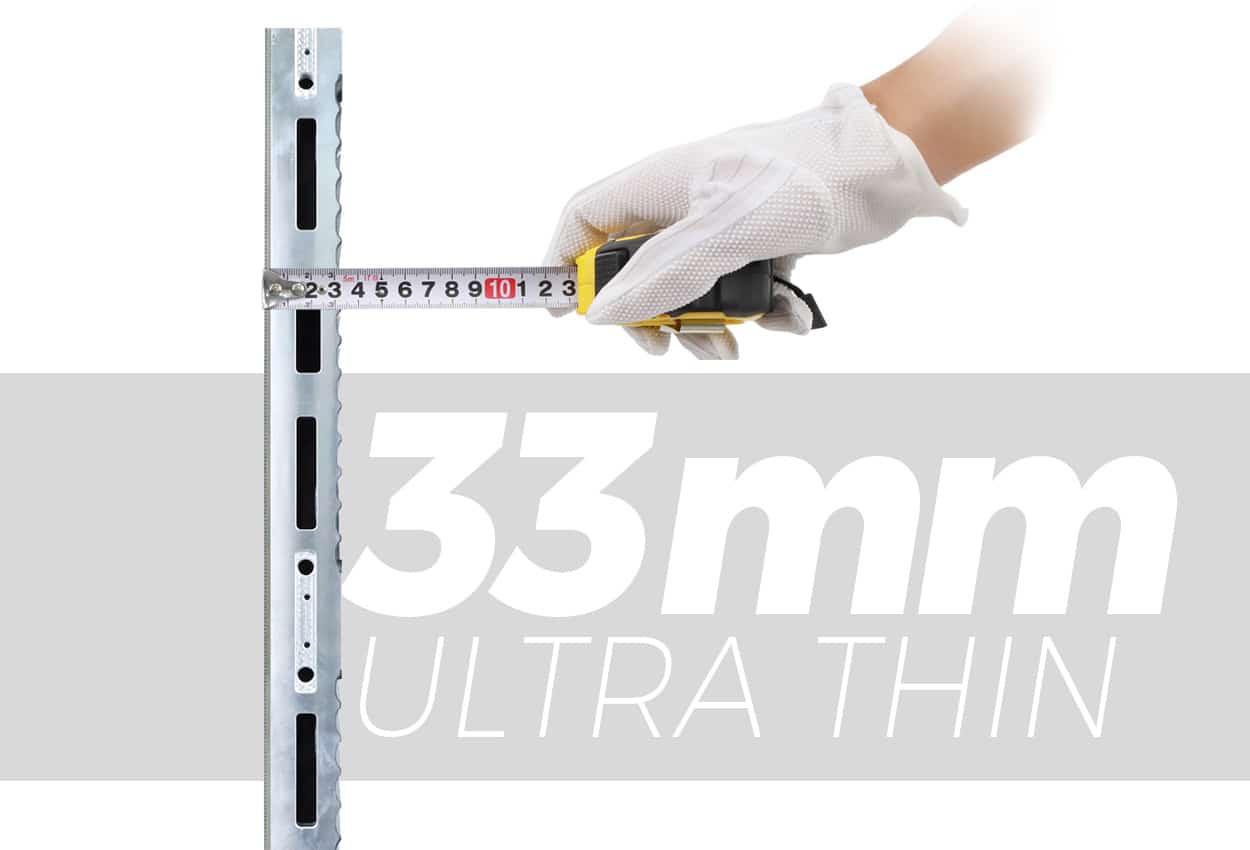

Does 33 mm describe the whole installation?

It describes the cabinet depth. Ask the installer to show the finished projection after mounting hardware, alignment allowances and cable routing are included.

Which four sizes are documented?

The listed formats are 500 × 250, 750 × 250, 1000 × 250 and 1000 × 500 mm. Confirm the exact mix on the order drawing; do not assume that unlisted formats are supplied as standard.

Does the HUB design remove all cables?

The manufacturer’s description addresses module-to-cabinet connections. The complete wall still needs its specified power and signal arrangement. Confirm that arrangement with a wiring drawing.

Can the wall display small text?

That depends on the selected pitch, physical text size and viewing position. Review your actual content at the intended size and distance before choosing the variant. A pitch label alone cannot establish readability for every layout.

Can it be used for a column display?

Column and right-angle configurations are documented. Ask for the specific corner assembly, fixing plan and front-service procedure for the proposed column, including access around furniture or surrounding finishes.
