EA960R4 LED Display Billboard: Rear Service and Model Comparison

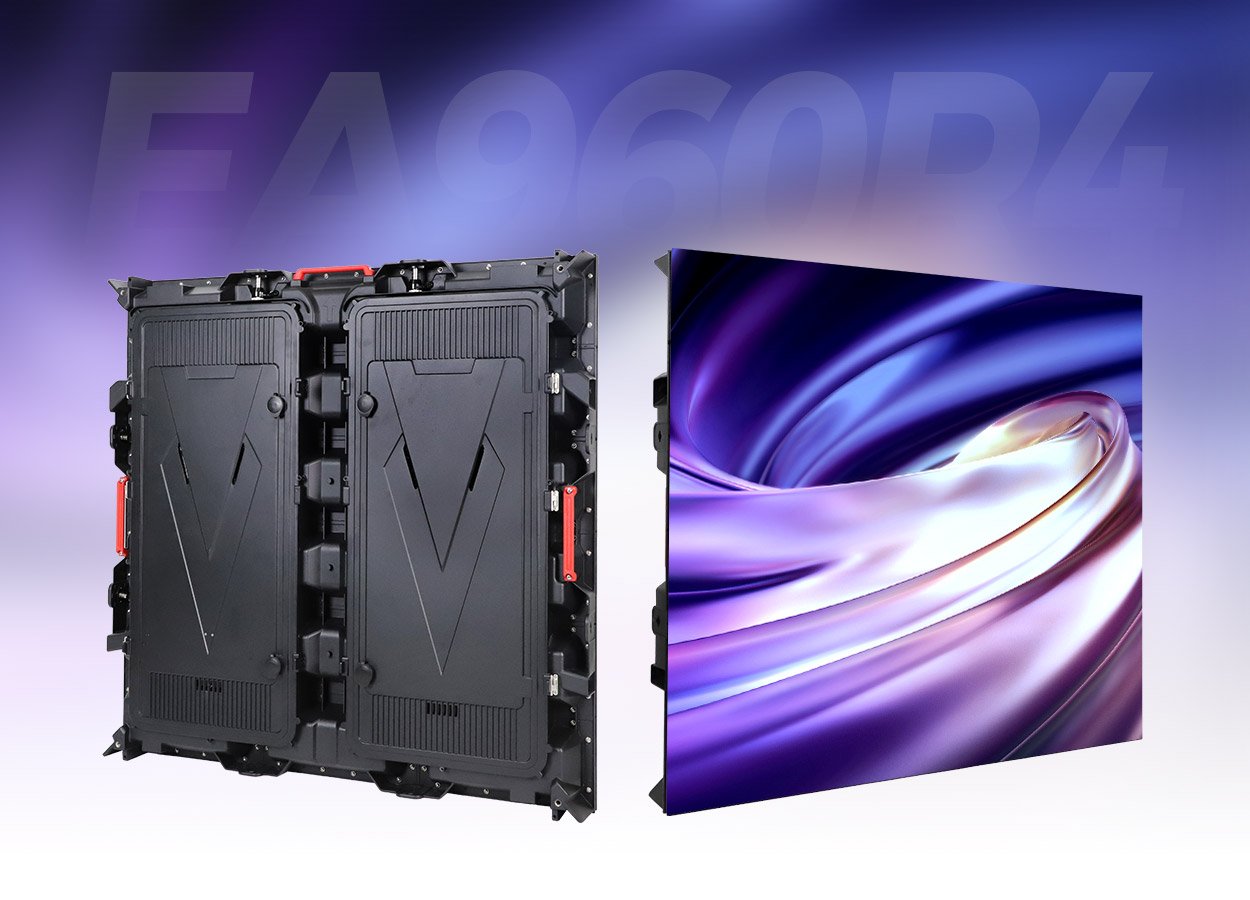

An outdoor cabinet with rear access and handling features

EA960R4 is an EagerLED outdoor display family for commercial advertising, fixed installations and rental use. Its magnesium-alloy cabinet combines an openable back cover with handles, quick locks and side openings for cabling. The first selection question is whether the proposed installation leaves a useful service area behind the screen. EA960R4 specs

For a permanent billboard, show the supplier the supporting structure and the route a technician will use. For an event package, explain how the equipment will be transported, assembled and stored. These requirements affect the scope of the proposal even when the chosen display model stays the same.

The commercial displays and rental displays collections provide different starting points for that conversation. A buyer planning both uses should ask for a documented arrangement for each. A general rental application statement does not identify the rigging hardware or support design for a particular event.

Compare the complete variant, including the P10 suffix

The published table lists 960 × 960 mm cabinets weighing 23 kg, with 320 × 160 mm modules. It contains separate P10 SMD and P10 DIP configurations. Their pitch designation alone does not distinguish brightness, drive mode or electrical values. EA960R4 specs

The power columns retain the manufacturer’s maximum and average labels. They are product entries, not an energy-cost forecast. Ask for a complete electrical schedule for the selected model and proposed display size. Do not copy a lower power value from another configuration into the site design.

Every listed variant has a refresh frequency of at least 3,840 Hz, 14-bit grayscale and a 140° viewing angle. The source gives the brightness values by model, so retain that detail when evaluating a sample or a revised offer. EA960R4 specs

Select for the content and the way people approach the screen

A commercial plaza may need information that people read while walking towards the display. A stage application may prioritize video viewed from designated audience areas. Provide sample content and a plan of those areas so the supplier can explain the selected pitch against the actual task.

The final screen drawing should state both physical dimensions and pixel resolution. Have the person preparing campaign files check that layout before content production begins. Ask to see small lettering, fine lines and moving footage that resembles the intended material. This is more useful than judging the display only through a promotional image.

If filming forms part of the project, include camera positions and capture requirements in the demonstration. The published refresh figure is relevant, but the complete camera result also depends on the selected operating configuration. Record the settings used for the approved demonstration so the installation team can reproduce the agreed setup.

Rear maintenance must fit the structure

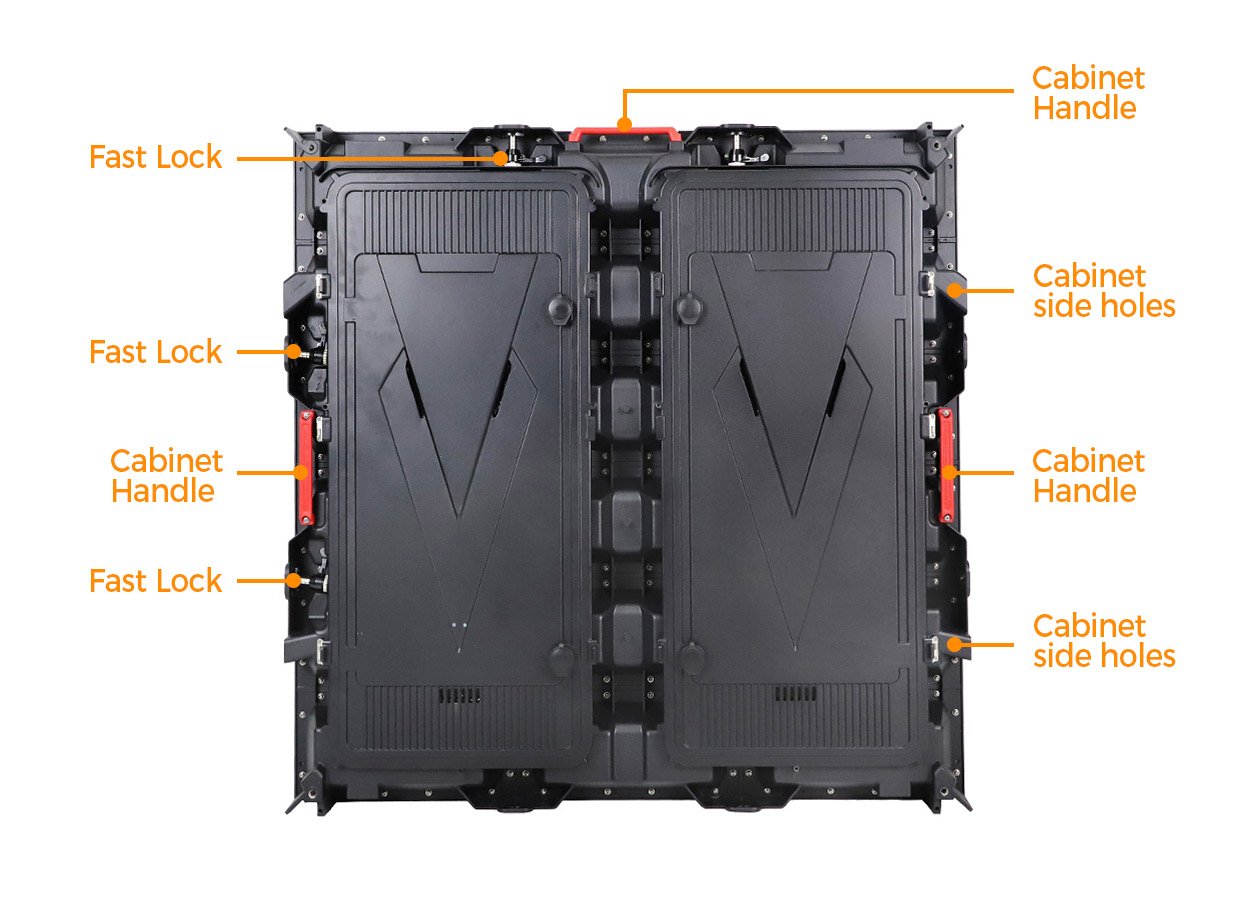

EagerLED describes an openable back cover for rear maintenance. It also identifies three cabinet handles, four quick locks and reserved side openings that carry power and signal cables between cabinets. Those details support handling and cable organization, but the support design still needs to provide working access. EA960R4 specs

Ask the installer to show the door opening and replacement route on a section drawing. Check whether cross-members, cladding or adjacent equipment would obstruct the technician. Include the path for removing a component from the service area, not just the space needed to reach it.

If the intended mounting position has no practical rear access, compare the service arrangement on EA960F4 before selecting the cabinet. The EA960R4 source supports rear maintenance; it should not be read as promising front removal. A clear access requirement can prevent a substantial redesign after the supporting structure is built.

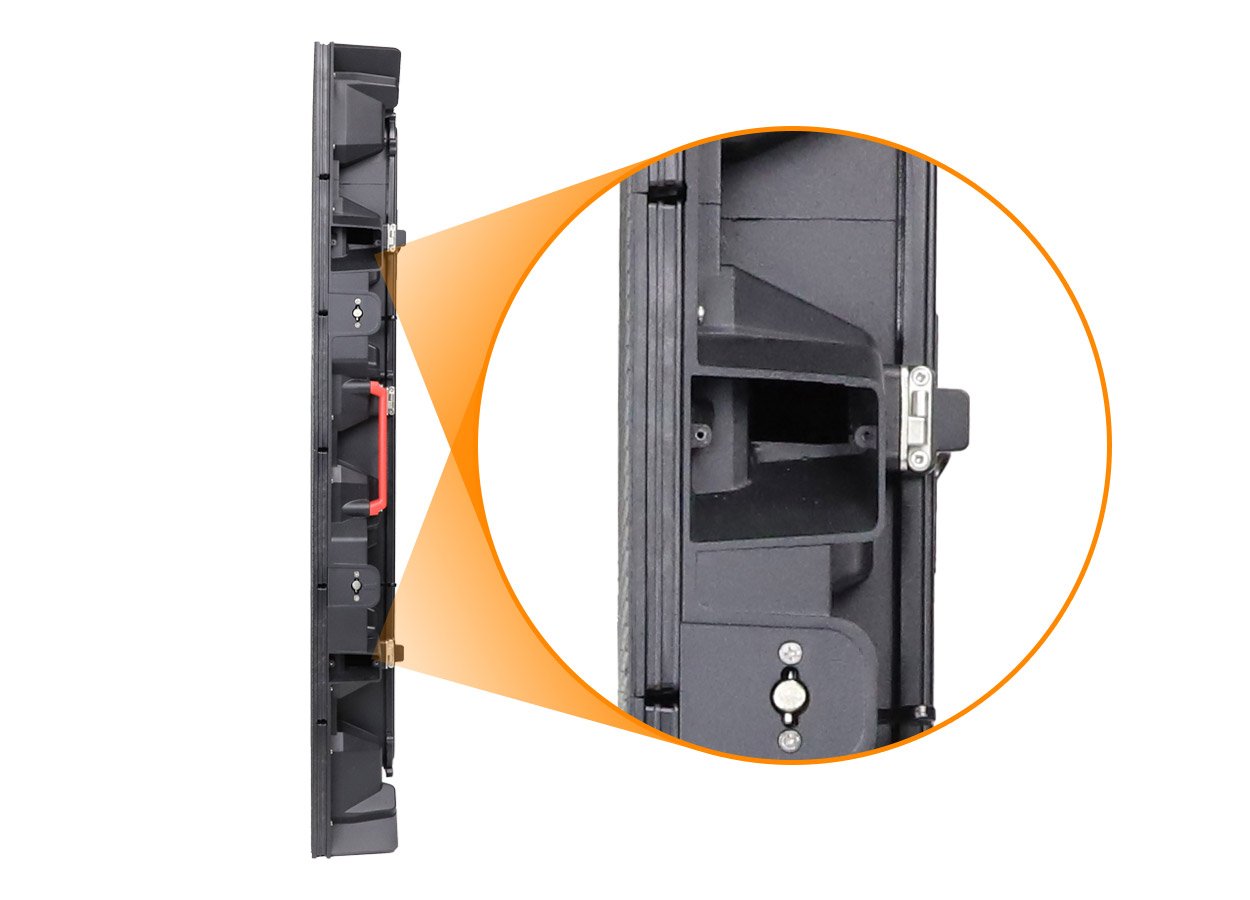

The side cable holes are useful points to discuss during the review. Request a drawing that identifies cable paths, connection points and the method used to preserve enclosure protection. The operator should receive that drawing along with a labeled cabinet map for later troubleshooting.

Handling and repeat use need a package specification

For a rental fleet, ask the supplier to demonstrate connecting and disconnecting the proposed cabinets using the supplied accessories. Record how the crew checks alignment and fasteners before the display is energized. Discuss packing and replacement parts with the people who will move the equipment regularly.

Keep mounting hardware separate from handling handles in the documentation. The product page describes convenient movement and quick connections, but it does not establish an approved lifting arrangement for the completed screen. Request the installation drawing and the appropriate equipment documentation for the intended setup.

For fixed advertising, the priorities change. The owner needs reliable access for inspection and replacement, a defined cleaning method and a way to identify a failed cabinet from the operating position. Specify how the contractor will label the array and hand over configuration records. These small documentation choices can make future service easier without changing the display hardware.

Outdoor operation and cooling

The rear cover uses two wing-shaped fans, according to the official description. The table lists IP65 protection and a working-temperature range of −20 to +60°C. Input is AC 100–240 V at 50–60 Hz. These values belong in the technical schedule for the selected equipment. EA960R4 specs

Share the site’s exposure and enclosure arrangement with the supplier. Keep the proposed ventilation route visible on the installation drawing and request any clearance requirements. For a screen enclosed by surrounding construction, have the installer explain how heat leaves that space during the intended operating schedule.

Ask the electrical contractor to work from the final equipment list. Include the display, control system and site distribution in the planning conversation. Separate maximum product demand from the source’s average consumption entry, and avoid treating either as a complete description of the building connection.

Information for a comparable quotation

Submit those details through the quote form. For a fixed-project comparison, the EA-OFixed page provides another cabinet family to review. Require each offer to identify its own cabinet list, brightness and service arrangement before comparing the total package price.

EA960R4 questions

Is the P10 DIP model the same as P10 2S?

No. The source lists EA960R4-OP10D and EA960R4-OP10-2S separately, with different drive modes, brightness and power figures. Use the complete reference in the order. EA960R4 specs

Can it be maintained from the front?

The official description specifies rear maintenance through an openable back cover. Request a service drawing for the proposed site and do not assume a front-service capability. EA960R4 specs

Does the cabinet support outdoor event enquiries?

Yes. EagerLED lists event venues and stage performances among its applications. The project still needs a defined support arrangement, cable plan and handling scope for the intended event. EA960R4 specs

Is the published average power a running-cost estimate?

It is a specification-table value tied to the model. Actual consumption depends on operation. Ask the supplier to explain the assumptions and have the contractor assess the full system before preparing an operating-cost estimate.
