A fixed-display family that needs a complete model reference
EagerLED positions EA-OFixed for permanent outdoor advertising. Its catalog includes flat cabinets, a curved cabinet family and other cabinet sizes. An enquiry that says only “EA-OFixed” or gives a pixel pitch leaves important choices unresolved: different entries can use different modules, cabinet dimensions and brightness values. EA-OFixed specs
Start with the permitted display outline and the intended viewing area. Supply a site photograph that shows the building or supporting structure, then mark where the screen face should sit. Ask the supplier to return a cabinet layout with a full model reference for each cabinet type. That drawing provides a useful basis for comparing quotations and reviewing an alternative configuration later.
The commercial displays collection helps frame a wider fixed-signage project. For EA-OFixed itself, keep the cabinet families below separate. Shared branding does not establish that their modules can be exchanged or that they share a mounting detail.
Main flat-cabinet configurations
The main table describes 960 × 960 mm cabinets weighing 36 kg. It includes surface-mounted LED configurations and two different P10 DIP entries. The DIP models have the same published brightness but use different module formats, so their complete suffixes matter. EA-OFixed specs
| Full model | Module size | Module resolution | Brightness |
|---|---|---|---|
| EA-OFixed-P4-960x960 | 320 × 160 mm | 80 × 40 pixels | 5,500 cd/m² |
| EA-OFixed-P5-960x960 | 320 × 160 mm | 64 × 32 pixels | 5,500 cd/m² |
| EA-OFixed-P6.67-960x960 | 320 × 160 mm | 48 × 24 pixels | 6,000 cd/m² |
| EA-OFixed-P8-960x960 | 320 × 160 mm | 40 × 20 pixels | 5,500 cd/m² |
| EA-OFixed-P10-2S-960x960 | 320 × 160 mm | 32 × 16 pixels | 5,800 cd/m² |
| EA-OFixed-P10D-16x16-960x960 | 160 × 160 mm | 16 × 16 pixels | 8,000 cd/m² |
| EA-OFixed-P10D-32x16-960x960 | 320 × 160 mm | 32 × 16 pixels | 8,000 cd/m² |
The source lists a refresh frequency of at least 3,840 Hz, 14-bit grayscale and a 140° viewing angle across these entries. Keep those values tied to the specified equipment. The final readability of a campaign also depends on the content size, viewing position and surrounding light. EA-OFixed specs
Request a content preview at the proposed display resolution. A roadside graphic with large lettering and a retail façade carrying detailed promotions may lead to different selections. The source does not give a universal viewing-distance rule that chooses the correct pitch for every site.
Curved cabinets use their own module format
The curved table lists 640 × 960 mm cabinets weighing 28 kg, built around 80 × 160 mm modules. It names the following configurations and lists brightness of 5,500 cd/m² for each. EA-OFixed specs
| Curved model | Module resolution | Drive mode |
|---|---|---|
| EA-OFixed-P4-640x960 | 20 × 40 pixels | 1/10 duty |
| EA-OFixed-P5-640x960 | 16 × 32 pixels | 1/8 duty |
| EA-OFixed-P6.67-640x960 | 12 × 24 pixels | 1/6 duty |
| EA-OFixed-P8-640x960 | 10 × 20 pixels | 1/5 duty |
| EA-OFixed-P10-640x960 | 8 × 16 pixels | 1/2 duty |
A curved product table does not define the finished radius or every connection to an adjacent flat area. Ask for the cabinet orientation, corner geometry and supporting detail in a project drawing. Have the content designer review that outline before producing material for the display.
If the project calls for a specific building-corner treatment, compare the documented options on EA960F4 or EA1000F2. Request a proposal against the actual building shape. Product-family names should not substitute for a drawing of the surface the audience will see.
Other sizes expand the selection
EA-OFixed also has a separate table for other dimensions. The entries below preserve those cabinet-specific values instead of applying the main flat cabinet’s weight to the entire range. EA-OFixed specs
| Full model | Cabinet dimensions | Cabinet weight | Brightness |
|---|---|---|---|
| EA-OFixed-P3-768x768 | 768 × 768 mm | 23 kg | 5,500 cd/m² |
| EA-OFixed-P4-768x768 | 768 × 768 mm | 23 kg | 6,000 cd/m² |
| EA-OFixed-P6-768x768 | 768 × 768 mm | 23 kg | 6,000 cd/m² |
| EA-OFixed-P8-1024x768 | 1024 × 768 mm | 30 kg | 6,000 cd/m² |
| EA-OFixed-P16D-1024x1024 | 1024 × 1024 mm | 40 kg | 10,000 cd/m² |
Screen area alone will not distinguish these configurations. Ask the quotation to identify cabinet quantities and the finished pixel resolution, then compare the proposed outline with the available installation area. A change in cabinet format can affect the support drawing and spare-parts list even when the advertised screen area appears similar.
Build protection and ventilation into the installation
The source describes heat-treated iron cabinets, integrated handles and a fan-cooled enclosure. It states that each main 960 × 960 mm cabinet has four aerofoil fans. Plan the installation around the manufacturer’s ventilation requirements and confirm them on the selected format. EA-OFixed specs
The specification tables distinguish IP65 at the front from IP54 at the rear. A general outdoor or IP65 headline should not erase that difference. Give the supplier photographs and drawings of the space behind the sign so the project team can review exposure and the proposed enclosure arrangement. EA-OFixed specs

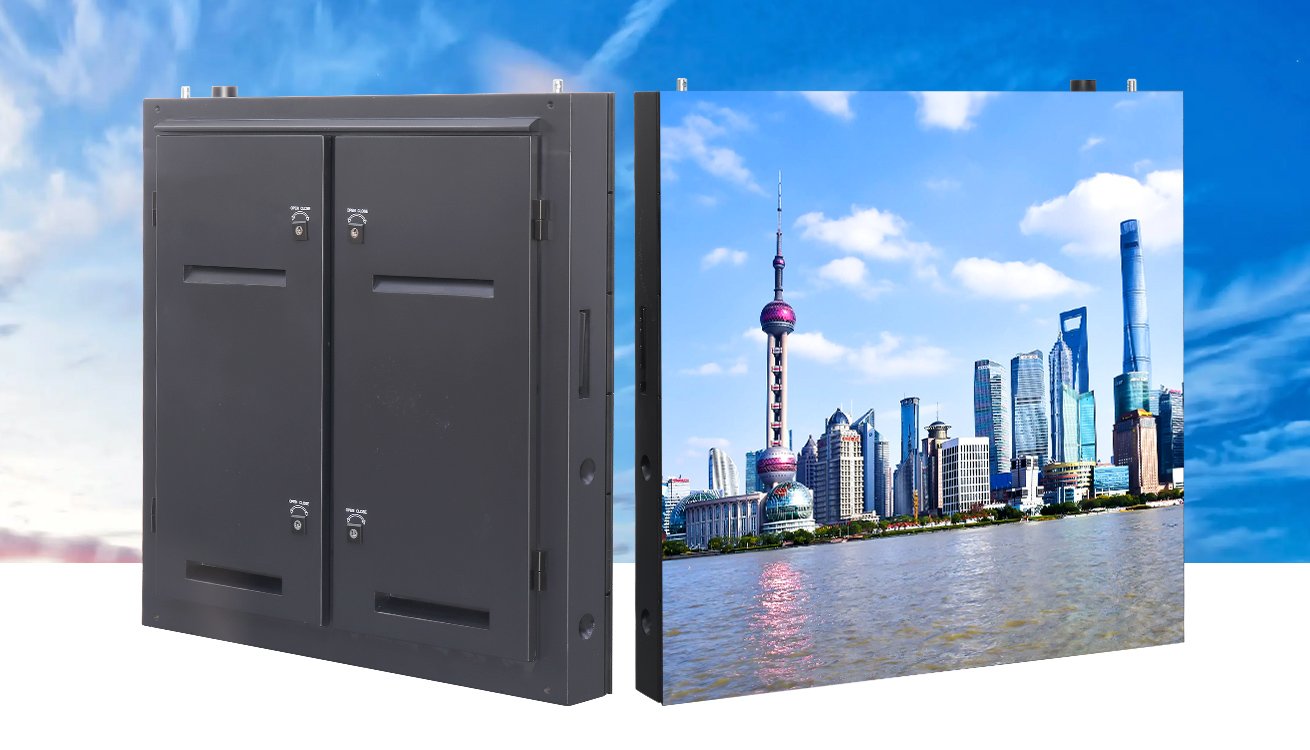

Rear cabinet doors are visible in the product imagery. Ask for a service demonstration and a drawing of the space required to open the supplied cabinet and remove its components. Confirm the access method directly; the source should not be read as promising a front-service system. Review the access route with the contractor before the supporting structure is finalized.
Cabinet material and a general weather-resistance statement do not establish a completed sign’s wind design. The project team still needs mounting information, the full equipment load and the local site conditions. The quotation should identify who supplies the support design and who checks the building connection.
Use electrical values from the selected column
The main flat table lists different power figures by configuration. For example, EA-OFixed-P4-960x960 is listed at 900 W/m² maximum and 300 W/m² average; the P10 DIP variants are listed at 520 W/m² maximum and 175 W/m² average. Keep those labels and model references together. EA-OFixed specs
Across the published tables, input is AC 100–240 V at 50–60 Hz and the working-temperature range is −20 to +60°C. These product entries do not define the building’s electrical distribution or predict its utility bill. Request a complete electrical schedule for the offered screen and its control equipment. EA-OFixed specs
Ask the operator to describe the expected operating schedule and content workflow. Those details help the supplier explain the intended brightness control, shutdown procedure and routine inspection needs. Include the documentation and spare parts in the handover scope so the installation can be maintained after the initial contractor leaves.
Compare offers against the same decisions
| Purchase decision | What a comparable offer should identify |
|---|---|
| Cabinet family | Flat, curved or other-size configuration with full references |
| Display geometry | Cabinet map, finished dimensions and pixel resolution |
| Module format | Exact module size and matching spare-part identification |
| Outdoor arrangement | Front and rear exposure, ventilation and service space |
| Supporting works | Mounting design and responsibility for the completed structure |
| Electrical package | Configuration-specific requirements and included control equipment |
| Maintenance scope | Access procedure, tools, spares and handover documentation |
Submit that scope through the quote form. If the procurement brief also includes cabinets used for events, review EA960R4 as a separate comparison. Ask the supplier to explain the installation and handling proposal for the intended use rather than selecting on cabinet appearance.
EA-OFixed questions
Are the P10 DIP entries duplicates?
No. In the main table, one uses a 160 × 160 mm module with 16 × 16 pixels, while the other uses a 320 × 160 mm module with 32 × 16 pixels. Keep the full model suffix in the order and spare-parts list. EA-OFixed specs
Is every EA-OFixed cabinet the same weight?
No. Weight varies with the cabinet family. The main flat, curved and other-size tables provide separate figures. Use the selected models when preparing the equipment schedule for the project engineer. EA-OFixed specs
Does the rear have the same protection rating as the front?
The published tables state IP65 front and IP54 rear. Confirm how the offered installation addresses rear exposure and cable connections. Do not shorten the specification to a single unqualified protection rating. EA-OFixed specs
Is a curved cabinet enough to specify a corner sign?
It identifies a product option, but the proposal still needs the finished curve and connection details. Request the display drawing, service route and content layout before accepting the cabinet quantities.
