EA960F4 Advertising LED Display: Cabinet Formats and Corner Options

Define the advertising surface before choosing the cabinet mix

EA960F4 is an outdoor advertising display for digital billboards, building façades and commercial sites. EagerLED describes an aluminum cabinet with front and rear maintenance, hard-connected modules and optional corner treatments. A proposal can therefore involve more than a rectangular array of identical cabinets. EA960F4 specs

Start with the shape the audience will see. Identify flat sections, changes in direction and any restriction on the space behind the sign. Have the supplier mark the proposed cabinet types on the building drawing. This lets the owner, installer and content team review the same surface before equipment quantities are fixed.

For a broader campaign installation, review the commercial displays collection. Compare EA1000F2 if the project team is assessing another cabinet platform, but keep the component dimensions and service details of each proposal separate. Similar application language does not make different module systems interchangeable.

Main flat-display specifications

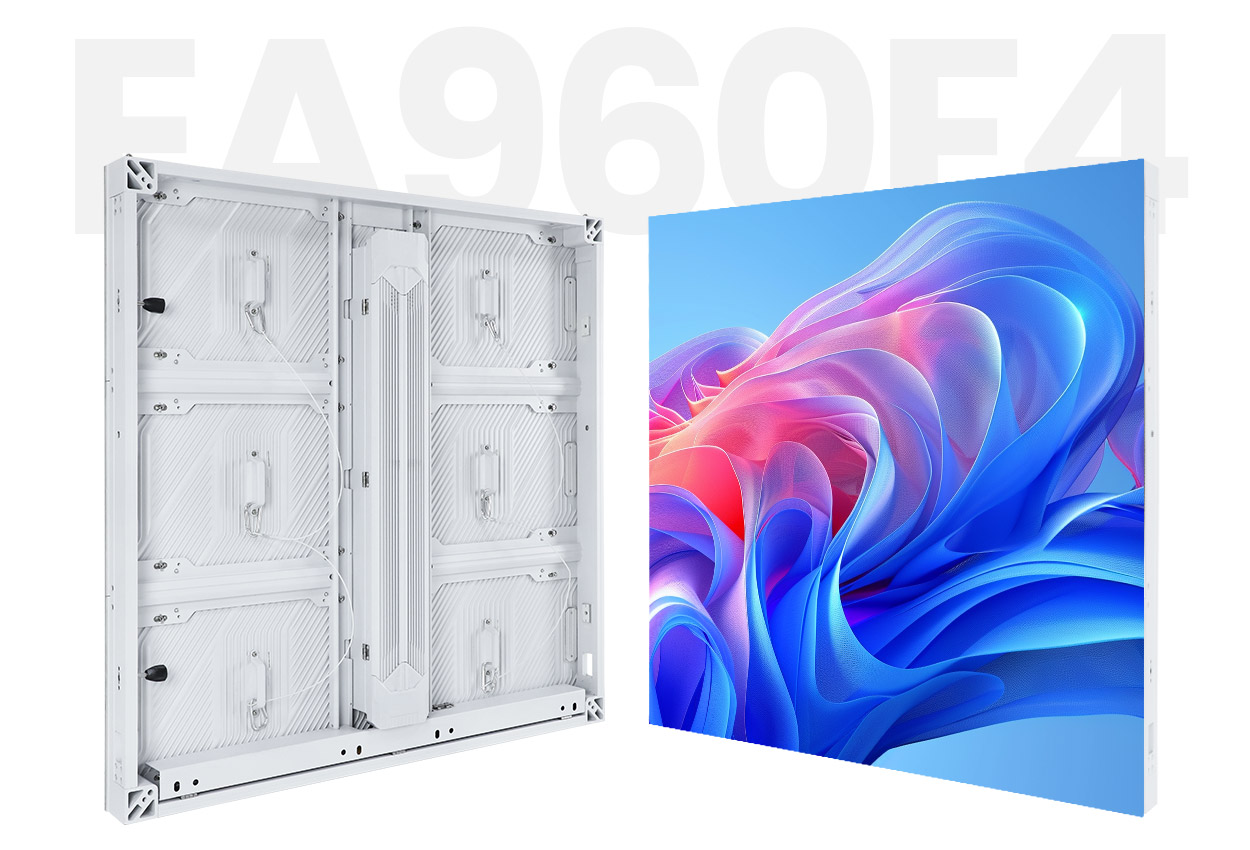

The main EA960F4 table lists five configurations using 480 × 320 mm modules and 960 × 960 mm cabinets. The cabinet weight is 25.3 kg across that table. The overview also gives a cabinet depth of 80 mm. These values should remain attached to the described main cabinet rather than every optional format. EA960F4 specs

The listed variants share at least 3,840 Hz refresh frequency, 14-bit grayscale and a 140° viewing angle. The source ties brightness to the selected variant; choosing a smaller pitch does not automatically choose the highest listed brightness. EA960F4 specs

Ask for a visual demonstration with the campaign’s smallest text and most detailed imagery. Provide the main viewing positions and surrounding light conditions. For a screen that people will photograph or film, include the proposed camera use in the evaluation. Published refresh performance is useful input, but the final image should be checked with the actual content and capture arrangement.

Flat formats, beveled corners and rounded corners

The source describes flat cabinet formats of 960 × 960, 1440 × 960 and 1440 × 640 mm on the main module platform. It separately describes optional 45° beveled-edge cabinets in 960 × 960 and 960 × 640 mm formats. A pair of beveled cabinets can form a 90° outside corner. EA960F4 specs

A beveled edge creates a sharp change in direction. EagerLED also offers a separate 90° curved cabinet for a rounded transition. Specify the intended treatment directly and ask the supplier to show it in plan view. The visual outline, cabinet quantities and supporting detail need to agree. EA960F4 specs

The curved table uses the references below. It lists 640 × 960 mm cabinets weighing 23.6 kg and 40 × 320 mm modules. Those figures differ from the main flat table and should remain attached to the curved configuration. EA960F4 specs

The source mentions glasses-free 3D advertising as an application for a curved installation. The cabinet option does not define the finished campaign. Ask the content provider to demonstrate material prepared for the proposed geometry and audience position. Include the screen map and any content delivery requirements in the handover.

Make dual-side maintenance useful on the installed screen

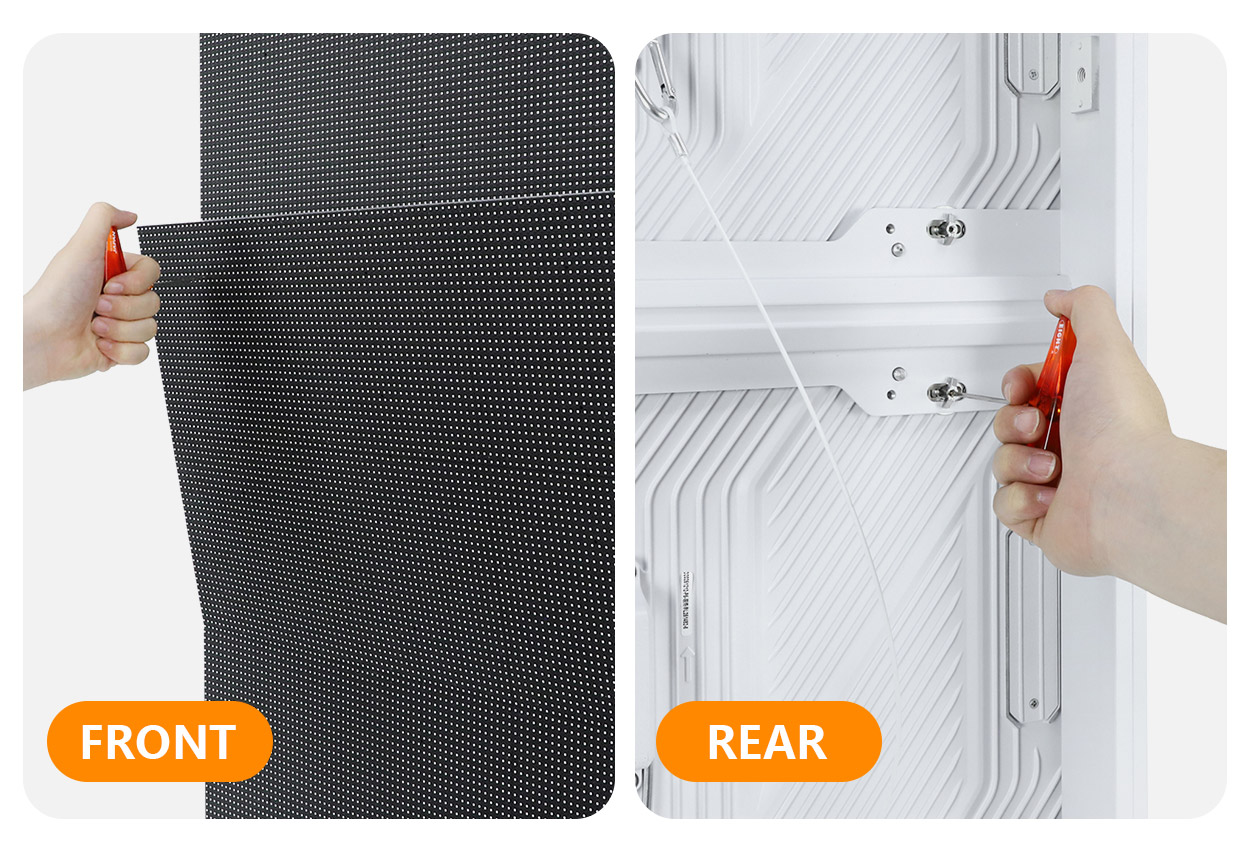

EagerLED states that installers can remove modules from the front or rear. Positioning pins and quick locks assist cabinet alignment, and each LED module has a safety tether. The hard-connected design routes power and data through the cabinet base instead of exposed cables between modules. EA960F4 specs

Those features give the installer options, but the building detail still determines what a technician can reach. Ask for a replacement demonstration using the chosen service side. Confirm the tool, the working space and how the module is retained during removal. The source image illustrates access from both faces, which is useful for discussing the intended procedure with the maintenance team.

Extend the access review to power supplies and control components. A front module-removal claim does not document every task needed behind the display. For corner installations, check the transition area specifically: the service method at the corner should appear on the drawing rather than be assumed from the flat cabinet.

Agree on module and cabinet identification before delivery. The parts list should distinguish flat and curved assemblies, even if they share the same pitch designation. Matching that list to the cabinet map makes it easier for the operator to request the correct replacement later.

Cooling, exposure and electrical planning

The cooling description includes aluminum module bases, vortex fans and a heat-transfer path through the cabinet door. EagerLED states that the power supply mounts against the door panel with thermal grease. Ask how the final supporting structure and surrounding cladding preserve the intended thermal arrangement. EA960F4 specs

The published tables list IP65 protection and a working-temperature range of −20 to +50°C. Review the actual exposure, connections and operating conditions with the supplier. Cabinet protection does not replace the installation team’s review of the completed enclosure and cable routes. EA960F4 specs

For the listed configurations, the source gives maximum power consumption of 500 W/m² and average consumption of 170 W/m². It lists AC 100–240 V input; the project should use the final electrical schedule supplied for the selected equipment. The average product value is not a measured consumption forecast for the planned campaign. EA960F4 specs

Have the electrical contractor and display installer agree on the package boundary. Identify the control equipment, the distribution work and the connection responsibilities. Supply the intended operating schedule so the owner can assess brightness control and shutdown procedures along with the display’s visual requirements.

Decisions to settle in the quotation

Send the drawings and content brief through the quote form. A comparison with EA-OFixed or the rear-service EA960R4 should use the same display outline and project scope. Ask each offer to state its own service arrangement and cabinet list so that the purchase decision does not depend on screen area alone.

EA960F4 questions

Is every EA960F4 cabinet the same size and weight?

No. The main table covers 960 × 960 mm, 25.3 kg cabinets, while the curved table covers 640 × 960 mm, 23.6 kg cabinets. The page also describes additional flat and beveled formats. Request the specification for each type in the proposed display. EA960F4 specs

Are the corner options included automatically?

The source identifies the beveled and curved cabinets as optional. The quotation should name the chosen geometry and include its cabinet quantities and model references. EA960F4 specs

Can the modules be serviced from either face?

Yes, the official description states front and rear module removal. Confirm how technicians reach the display and its other serviceable components after installation. EA960F4 specs

Does a curved cabinet supply a finished 3D effect?

The source names that application, but a finished campaign also needs content prepared for the display geometry. Approve a demonstration at the intended viewing position and agree on the content files and control arrangement before launch. EA960F4 specs
